The HPE Aruba AP304 Series Access Points (JX935A) are vital for businesses looking to upgrade to the latest wireless network technology. With an impressive aggregate peak data rate of 1.7Gbps, they support modern devices and large numbers of users without slowdown. Not only do these APs handle dense client environments, but they also come with ClientMatch technology, which ensures devices seamlessly transition to the strongest signal, eliminating sticky client behavior.
The AP304’s MU-MIMO capabilities mean devices can communicate simultaneously, significantly increasing network throughput and efficiency. This feature is essential for environments where users require concurrent high-speed access, such as collaborative workspaces, educational institutions, and retail venues.
Moreover, the integrated Aruba Beacons enhance location-based services and user engagement, enabling businesses to leverage proximity-based marketing and in-depth analytics. Intelligent power monitoring, a feature of the 300 series, offers an economical solution by managing power consumption, essential in PoE deployments.
Security is also a core component of the HPE Aruba AP304. The integrated wireless intrusion protection system provides comprehensive security without additional hardware. Simultaneously, the TPM (Trusted Platform Module) maintains the integrity of cryptographic keys and enhances network security.
With support for up to 255 clients per radio and 16 BSSIDs per radio, these APs can grow with your business. They are scalable, secure, and feature-rich, making them a prudent investment for businesses aiming to enhance their network infrastructure. Overall, the HPE Aruba AP304 Series Access Points deliver exceptional value, performance, and security all in one intuitive device.
The entry-level Aruba 300 Series Access Points (APs) deliver high performance and superb user experience for medium density environments. The 300 series APs enable an all wireless digital work environment in a cost effective manner.
Quick Specs

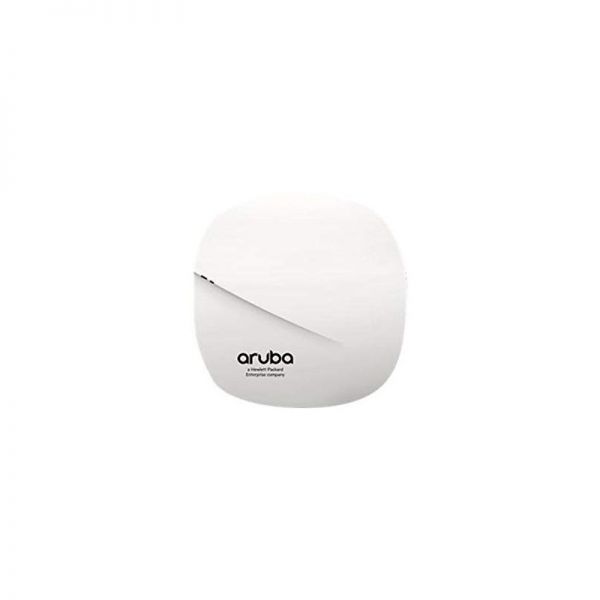

Figure 1 shows the appearance of JX935A.
Table 1 shows the Quick Specs.
Product Code |
JX935A |
Form Factor |
In-ceiling |
Capacity |
Wireless clients per Wi-Fi radio: 255 ¦ BSSIDs per radio: 16 |
Power Consumption Operational |
13 Watt |
Frequency Band |
2.4 GHz, 5 GHz |
Interfaces |
3 x antenna – RP-SMA ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x USB 2.0 – Type A |
Product Details
Figure 2 shows the front panel of JX935A.
Figure 3 shows the back panel of JX935A.
JX935A provides these features:
Entry Level 802.11ac Wave 2 Access Points
- The Aruba 300 Series Access Points deliver high performance and superb user experience for medium density environments.
- Features 3×3:3SS MU-MIMO capability, Aruba advanced ClientMatch radio management, and integrated Aruba Beacons.
- Maximum concurrent data rate of 1,300 Mbps in the 5GHz band and 400 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.7Gbps).
- Supports multiuser MIMO (MU-MIMO) and 3 spatial streams (3SS). Provides simultaneous data transmission to multiple devices (up to two), maximizing data throughput and improving network efficiency.
Intelligent Power Monitoring
- For the Aruba 300 Series Access Points, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source.
- By default, the USB interface will be the first feature to turn off if AP power consumption exceeds the available power budget.
Threat Protection and Security
- The Aruba 300 Series Access Points feature integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.
The Accessories
Table 2 shows the accessories of JX935A.
Mount Kit |
|
JW046A |
AP-220-MNT-W1 Basic Mount Kit:HP Aruba Campus AP Mounting Kits |
JW047A |
AP-220-MNT-W1W Mt Basic White Kit |
Power Adaptor |
|
JW629A |
PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector |
External Antenna |
|
JW009A |
AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor Antenna |
Compare to Similar Items
Table 3 shows the comparison of JX935A.
Module |
JX935A |
JX945A |
Form Factor |
In-ceiling |
In-ceiling |
Capacity |
Wireless clients per Wi-Fi radio: 255 ¦ BSSIDs per radio: 16 |
Wireless clients per Wi-Fi radio: 255 ¦ BSSIDs per radio: 16 |
Power Consumption Operational |
13 Watt |
13 Watt |
Frequency Band |
2.4 GHz, 5 GHz |
2.4 GHz, 5 GHz |
Interfaces |
3 x antenna – RP-SMA ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x USB 2.0 – Type A |
1 x 1000Base-T – RJ-45 ¦ 1 x USB 2.0 – Type A |
