The Cisco Catalyst WS-C3650-48PQ-S switch is an investment in network reliability and scalability. Its 48 POE+ ports enable the direct powering of devices, while the 10G SFP uplinks provide high-speed connectivity essential for handling substantial data traffic and ensuring future expansion capabilities. The switch’s IP Base feature set can be upgraded to IP Services, increasing the range of advanced features available. StackWise-160 compatibility offers flexibility with up to 9 units stackable, increasing redundancy and network resiliency. This switch is designed to support the growing demands of wireless networks and provides seamless integration with Cisco’s Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC), allowing for consistent hardware and software interaction. The robust security features safeguard against unauthorized access, ensuring a secure networking environment. The energy-efficient design contributes to lower operating costs. Comprehensive management options, including both console and USB ports, simplify setup and ongoing maintenance. The 160Gbps stack bandwidth and 130.95Mpps forwarding performance prevent bottlenecks, even in data-intensive environments, while the 176Gbps switching capacity can handle surges in network traffic adeptly. In sum, the Cisco WS-C3650-48PQ-S is designed to meet the challenges of modern networks, providing performance, flexibility, and security.
Cisco Catalyst WS-C3650-48PQ-S is the next generation of enterprise-level stable access layer switch and integrates with 48 POE+ Ethernet ports and 4 x 10G SFP uplink ports in IP Base feature set.
Quick Specs

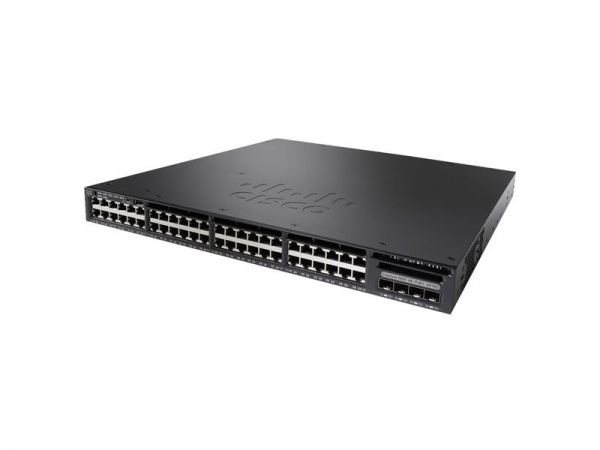

Figure 1 shows the appearance of WS-C3650-48PQ-S.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3650-48PQ-S |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
IP Base |
|
Uplink Interfaces |
4 x 10G SFP+ uplinks |
|
Ports |
48 x 10/100/1000 POE+ Ethernet ports |
|
Available PoE Power |
390W |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
160Gbps |
|
Forwarding Performance |
130.95Mpps |
|
Switching Capacity |
176Gbps |
|
RAM |
4 GB |
|
Flash Memory |
2 GB |
|
Number of AP per switch/stack |
50 |
|
Number of wireless clients per switch/stack |
1000 |
|
Dimensions |
44.5 x 44.8 x 4.4 cm |
|
Package Weight |
17.49 Kg |
Product Details
Figure 2 shows the front view of WS-C3650-48PQ-S.
Note:
· There are 48 10/100/1000 POE+ Ethernet ports on the front panel.
· The unlink interfaces support 4 x 10G SFP+ uplinks.
Figure 3 shows the back panel of WS-C3650-48PQ-S.
Note：
â‘ Ground connector â‘¡ CONSOLE (RJ-45 console port) â‘¢ MGMT (RJ-45 10/100/1000 management port) â‘£ Fan module
⑤ Power supply modules ⑥ Stacking modules
Figure 4 shows the StackWise-160 Kit.
The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches.
The Modules, Licenses and Accessories
Table 2 shows some recommended modules, licenses and accessories of this switch.
|
Models |
Description |
|
C3650-STACK-KIT= |
Cisco Catalyst 3650 Stack Module Spare |
|
L-C3650-48-S-E= |
C3650-48 IP Base to IP Services Electronic RTU License |
|
PWR-C2-640WAC= |
640W AC Config 2 Secondary Power Supply |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Console Cable 6 ft with USB Type A and mini-B |
Get more information
Do you have any question about the Cisco C3650-48PQ-S switch?
Contact us now via Contact Form or sales@northlandusa.com.
