The Cisco Catalyst WS-C3560X-48P-E switch is an ideal purchase for businesses seeking robust performance and reliability. Its 48 Gigabit Ethernet POE+ ports cater efficiently to a wide array of devices, including IP phones, surveillance cameras, and wireless access points, enabling a versatile and interconnected network environment. With 435W of total POE power, the WS-C3560X-48P-E delivers sufficient power to operate numerous POE devices, providing operational flexibility and cost savings by eliminating the need for additional power supplies.
The switch’s capacity for optional uplink modules, featuring 1G and 10G Ethernet connections, guarantees scalability for your growing network demands. This feature ensures that as your enterprise expands, your network can easily adapt without requiring a complete hardware overhaul. Additionally, the switch’s full Layer 3 routing capabilities, including support for BGP, EIGRP, and OSPF, facilitate efficient data traffic management across large, complex networks, thus reducing latency and improving overall network performance.
Securing your network is paramount, and the WS-C3560X-48P-E offers comprehensive security features to protect your infrastructure against threats. Access control lists (ACLs), identity-based networking services, and advanced encryption are just some of the numerous security measures available to safeguard your data.
For organizations that prioritize uptime, the switch’s dual redundant power supply feature provides an additional layer of resilience. Should one power source fail, the other immediately takes over, ensuring uninterrupted service and minimizing downtime.
In summary, the Cisco Catalyst WS-C3560X-48P-E switch is a future-proof investment that will serve the demands of dynamic and expanding network environments, offering enhanced POE capabilities, comprehensive security, and reliable performance backed by Cisco’s proven expertise.
Cisco Catalyst WS-C3560X-48P-E is 48 Gigabit Ethernet POE+ ports standalone switch with four optional 1G/10G network uplink module and no option to stack in IP service feature set. WS-C3560X-48P-E support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP service feature set provides up to 1005-Vlans and advanced layer 3 routing features, advanced security features and management features.
WS-C3560X-48P-E is designed for enterprise distribution layer switching in full layer 3 capability includes BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced Qos, VRF-lite. WS-C3560X-48P-E switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.
-

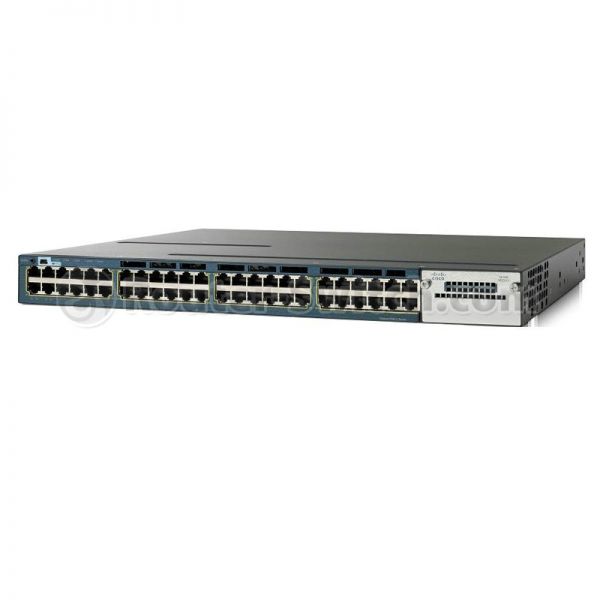

WS-C3560X-48P-E
Cisco Catalyst 3560-X Series Switch
- 48 * 10/100/1000 Ethernet PoE+ ports
- Four optional uplink network modules with GE or 10GE ports
- 435W POE power budget with up to 30W per port
- Dual redundant, modular power supplies and fans
- IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR
- 64MB flash and 256 memory (DRAM)
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Figure 1
Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports (Figure 1);
The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:
Figure 2
Dual Redundant Modular Power Supplies
Cisco Catalyst 3750-X Series and 3560-X Series Switches support dual redundant power supplies (Figure 2);
One power supply is shipped with the switch by default;
Other power supply/suppliers can be purchased when ordering the switch or next time according to your needs.
If only one power supply is installed, it should always be in the power supply bay 1.
Table below shows the different power supplies available in these switches and available PoE power.
Power Supply Models
