The Cisco Catalyst WS-C3560X-24T-S switch is ideal for enterprise-level networks needing reliability and security. Its 24 Gigabit Ethernet ports efficiently handle high bandwidth demands. The switch’s IP base software feature set includes basic Layer 3 routing capabilities, up to 1005 VLANs, advanced security features, and comprehensive management tools. Flexibility is a major benefit, as it offers four optional uplink network modules, allowing custom configurations with either Gigabit or 10 Gigabit Ethernet connections.
Moreover, the WS-C3560X-24T-S provides investment protection with its license-based software upgrade capability, enabling you to extend its functionality with advanced Layer 3 features like BGP, EIGRP, and OSPF when needed. MACsec hardware-based encryption secures network traffic without sacrificing performance, giving peace of mind in data-sensitive environments.
An energy-efficient design reduces operational costs and supports sustainability objectives. The dual redundant, modular power supply system enhances uptime, as one unit can continue to operate if the other fails, ensuring continuous operation. For IT managers, having USB Type-A and Type-B ports simplify file transfers and firmware upgrades, while the out-of-band Ethernet management port offers a separate path for troubleshooting.
Choosing the WS-C3560X-24T-S means opting for a solid foundation for future growth with capability expansions as your business evolves. Whether you’re upgrading an existing infrastructure or designing a new network, the Cisco Catalyst 3560-X series provides performance, security, and reliability you can trust, backed by Cisco’s reputation for excellence in networking solutions.

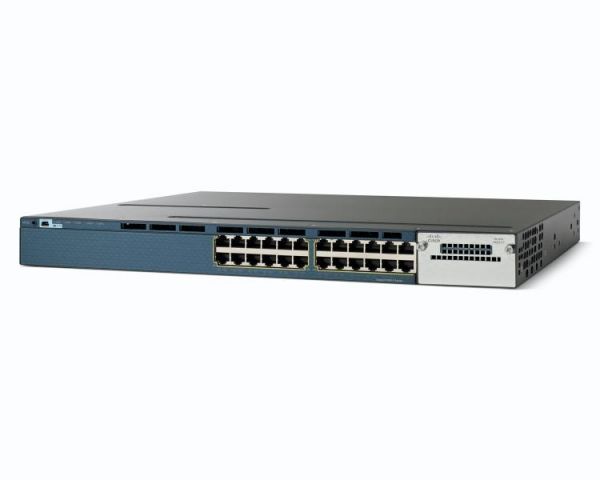

Cisco Catalyst WS-C3560X-24T-S is 24 Gigabit Ethernet ports standalone switch with no stacking option in IP base feature set. Four optional network modules and license-base software feature offer flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security features and management features. WS-C3560X-24T-S is designed for enterprise access/aggregation layer switching; however, customers can transparently upgrade the software feature to by purchasing IP services license to activity advanced layer 3 capability to fully support BGP, EIGRP, OSFP routing. WS-C3560X-24T-S switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.
WS-C3560X-24T-S
Cisco Catalyst 3560-X Series Switch
- 24 * 10/100/1000 Ethernet ports
- Four optional uplink network modules with GE or 10GE ports
- Dual redundant, modular power supplies and fans
- Baseline Layer 3 routing features
- Media Access Control Security (MACsec) hardware-based encryption
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Figure 1
Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports (Figure 1);
The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:
Figure 2
Dual Redundant Modular Power Supplies
Cisco Catalyst 3750-X Series and 3560-X Series Switches support dual redundant power supplies (Figure 2);
One power supply is shipped with the switch by default;
Other power supply/suppliers can be purchased when ordering the switch or next time according to your needs.
If only one power supply is installed, it should always be in the power supply bay 1.
Table below shows the different power supplies available in these switches and available PoE power.
Power Supply Models
Affordability Meets Quality in WS-C3560X-24T-S
Purchasing the Cisco 3560-X Switch from Northland Systems isn’t just a transaction, it’s an investment in robust technology coupled with economic sensibility. Northland Systems offers this device at wholesale prices, upholding a 100% Low Price Guarantee to ensure you’re receiving the best value.
Free Expert Support at Your Fingertips
Decision-making is made easier with access to free expert CCIE technical support. This indispensable resource spans various communication channels and adds incredible value by guiding you through complex technical landscapes without any added cost.
Secure and Convenient Purchasing Experience
With Northland Systems, your financial transactions for the Cisco Switch Catalyst 3560 are fortified by secure payment gateways, boasting certifications from McAfee Secure and VeriSign Secured. Flexible shipment options tailor the purchasing experience to your unique needs.
Guaranteed Authenticity and Top-Notch Condition
Every switch, including the WS-C3560X-24T-S, is verified for authenticity and provided in either “New Sealed” or “Used / Refurbished” conditions. These products have passed a thorough testing protocol by Cisco-certified engineers to assure reliability and performance.
Shop with Confidence
Trust is essential, which is why Northland Systems stands behind their products with a 100% Money Back Guarantee. Your peace of mind is paramount, cementing a foundation of confidence when you choose to invest in our network solutions.
Dependability and Economical Discounts
Since 1997, Northland Systems has established itself as a dependable player in the industry. When you purchase the WS-C3560X-24T-S, substantial discounts await, providing economic efficiency alongside our reputable service.
Why Choose Pre-owned Hardware
Opting for pre-owned hardware translates to a spectrum of advantages – cost savings without sacrificing quality, faster delivery compared to new orders, comprehensive warranty coverage, and environmental sustainability. Additionally, access to legacy parts ensures your infrastructure’s longevity and stability.
Explore our inventory, including various options in Switches > Cisco Switches, and select the Cisco 3560-X Switch that aligns with your technical requirements and budgetary constraints, knowing you’re backed by Northland’s commitment to quality and client satisfaction.
