Purchasing the Cisco Catalyst WS-C2960XR-48TD-I switch ensures a network’s competitiveness with improving scalability and reliability. Its dual power supply design prevents downtime by enabling continued operation even if one power source fails, crucial for maintaining 24/7 business activities. Layer 3 routing capabilities, including RIP, OSPF, EIGRP, and more, allow for efficient network traffic management, making it ideal for medium-sized enterprise networks. Networking demands grow with the business, and the WS-C2960XR-48TD-I’s FlexStack-Plus technology simplifies this process, allowing for the stacking of up to 8 switches, increasing functionality without the need for additional hardware. Its robust security features ensure network integrity, safeguarding sensitive data and preserving company reputation. With investments in networking equipment being significant, the switch’s durable design and Cisco’s reputation for reliability ensure longevity and a sound return on investment. The potential for high-speed connections with 10G SFP+ uplinks satisfies increasing bandwidth demands, making this switch a future-proof choice for progressive enterprises.
Cisco Catalyst 2960-XR series switches offer power resiliency with optional dual field-replaceable power supplies and IP Lite Cisco IOS software with dynamic routing and Layer 3 features. WS-C2960XR-48TD-I is one of 2960-XR switches, IP Lite switch, supporting forty-eight 10/100/1000 Ethernet ports and two 10G SFP+ uplinks. IP Lite Image enables basic access layer 3 routing features, such as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM stub, etc.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960XR-48TD-I |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
IP Lite |
|
Uplink Interfaces |
2 x 10G SFP+ |
|
Ports |
48 x 10/100/1000 Ethernet Gigabit ports |
|
Forwarding Bandwidth |
108Gbps |
|
Maximum stacking number |
8 |
|
Stack bandwidth |
80G |
|
Switching Bandwidth |
216Gbps |
|
RAM |
512 MB |
|
Flash Memory |
128 MB |
|
Dimensions |
44.5 cm x 40.8 cm x 4.45 cm |
|
Package Weight |
16.15 Kg |
Product Details

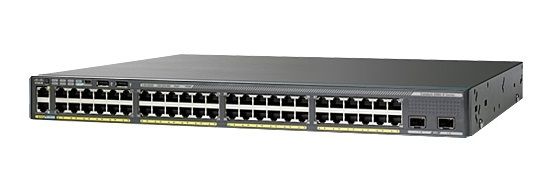

Figure 1 shows the front panel of WS-C2960XR-48TD-I.
Note:
·There are Forty-eight 10/100/1000 Ethernet Gigabit Ports and Two 10G SFP+ uplinks on the front panel.
·Two USB Type A ports and one USB mini-Type B (console) port are on the left.
·This switch offers one RJ-45 console port and one Ethernet management port on the left of the front panel.
Figure 2 shows the back panel of WS-C2960XR-48TD-I.
Note:
① FlexStack-Plus module slot and cover ② Power supply slot (with blank module) ③ AC OK LED ④ PS OK LED
⑤ AC power connector on the power supply module
The WS-C2960XR-48TD-I supports stacking with the optional stack kit. It has the FlexStack-Plus module (hot-swappable) that inserts in the slot located in the switch rear panel, and a 0.5-meter FlexStack cable to connect the FlexStack-Plus module ports. The stack module should purchase separately.
The Accessories
Table 2 shows some accessories of WS-C2960XR-48TD-I.
|
Models |
Description |
|
C2960X-STACK |
Catalyst 2960-X FlexStack Plus Stacking Module |
|
CAB-STK-E-0.5M |
Cisco FlexStack Stacking Cables |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison of similar items.
|
Models |
WS-C2960XR-48TS-I |
WS-C2960XR-48TD-I |
|
Ports |
48 x 10/100/1000 Ethernet Gigabit ports |
48 x 10/100/1000 Ethernet Gigabit ports |
|
Uplinks |
4 x 1G SFP |
2 x 10G SFP+ |
|
Feature Set |
IP Lite |
IP Lite |
|
FlexStack-Plus Stacking |
Optional |
Optional |
