Investing in the Cisco Catalyst 2960X-24TD-L switch ensures a network infrastructure primed for growth and scalability. Cisco’s reliability and cutting-edge technology come standard, providing a resilient and secure environment for your data and communication needs. This switch stands out with its high-performance capabilities, offering a large switching bandwidth of 216 Gbps and a fast forwarding rate, ensuring that data packets are efficiently processed without delay, ideal for bandwidth-intensive tasks.
For organizations looking to future-proof their network, the switch’s ability to stack up to 8 units with the same LAN base series via FlexStack-Plus technology means that network capacity can be expanded seamlessly, without the need for immediate hardware replacements. Also, the absence of Power over Ethernet (PoE) makes it ideal for deployments that do not require powered devices, thus reducing unnecessary energy expenditure.
The 24 Gigabit Ethernet ports cater to numerous devices, facilitating high-speed connections across the network, while the 2 SFP+ uplink interfaces make it simple to connect to high-speed storage networks or core infrastructure, providing avenues for intense data transfer and reliable access to vital resources.
Management and configuration are simplified with USB and console ports, making initial setup and future adjustments straightforward for network administrators. The switch is also equipped with a robust suite of Cisco’s IOS software features that contribute to network security, quality of service (QoS), and energy efficiency.
Utilizing a switch from a reputable brand like Cisco also means access to extensive support and documentation, ensuring that any issues can be resolved quickly. Long-term, this reliability translates into lower operational costs and minimizes downtime, thereby preserving business continuity and protecting the bottom line.
Cisco Catalyst 2960X Series 24 ports LAN Base stackable switch is comprised of 24 Ethernet 10/100/1000 ports and 2 * 10G SFP+ uplink interfaces.
Quick Specs

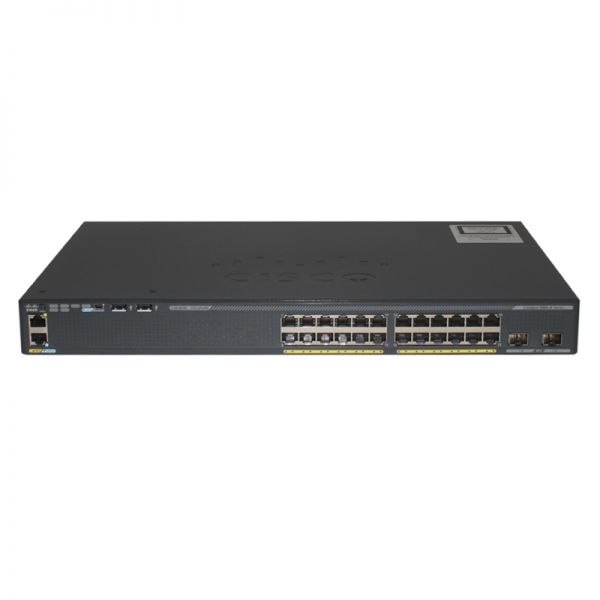

Figure 1 shows the appearance of WS-C2960X-24TD-L.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960X-24TD-L |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN Base |
|
Uplink Interfaces |
2 x 10G SFP+ |
|
Ports |
24 x 10/100/1000 Ethernet Gigabit ports |
|
Available PoE Power |
None |
|
Maximum stacking number |
8 |
|
Stack bandwidth |
80G |
|
Forwarding Performance |
95.2Mpps |
|
Switching Bandwidth |
216Gbps |
|
RAM |
512 MB |
|
Flash Memory |
128 MB |
|
Dimensions |
44.5cm x 27.9cm x 4.45cm |
|
Package Weight |
9.19 Kg |
Product Details
Figure 2 shows the front panel of WS-C2960X-24TD-L.
Note:
â‘ Ethernet management port â‘¥ SFP module ports
② Mode button ⑦ 24 x 10/100/1000 ports
③ Switch LEDs ⑧ CONSOLE LED
④ USB mini-Type B (console) port ⑨ MGMT LED
⑤ USB Type A ports ⑩ RJ-45 console port
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST and STACK LEDs.
Figure 3 shows the back panel of the Cisco Catalyst 2960X-24TD-L switch.
Note:
â‘ FlexStack-Plus module slot and cover â‘¢ RPS Connector
â‘¡ Fan Exhaust â‘£ AC power connector
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
The Accessories
Table 2 shows some accessories of WS-C2960X-24TD-L.
|
Models |
Description |
|
C2960X-STACK |
Catalyst 2960-X FlexStack Plus Stacking Module |
|
CAB-STK-E-0.5M |
Cisco FlexStack Stacking Cables |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Console Cable 6 ft with USB Type A and mini-B |
