The Cisco Catalyst 2960-S Series Switch WS-C2960S-48TS-S is a sound investment for businesses looking to enhance their network infrastructure. Firstly, the switch offers an impressive array of 48 Gigabit Ethernet ports, enabling high-speed connections across the network. This is fundamental for supporting the increasing demands of bandwidth-intensive applications common in today’s digital workplaces.
Secondly, the device’s scalability is a key benefit. The inclusion of four 1G SFP uplink interfaces means the switch can connect to higher-level networking hardware, such as core switches, allowing for future network expansion without the need for immediate replacement. Additionally, the optional stacking module can combine multiple switches into a single logical unit, providing easier manageability and increased redundancy.
Another compelling reason to purchase this switch is its efficiency and reliability. With a switching capacity of 176 Gbps and a forwarding rate of 74.4 Mpps, the WS-C2960S-48TS-S handles large amounts of data with a lower risk of bottlenecks. This ensures a smooth and consistent network experience. Also, the LAN Lite software feature set that comes with the WS-C2960S-48TS-S simplifies the deployment and management of the device, ideal for organizations with limited IT resources.
Furthermore, the 1U rack-mountable design of the switch makes it suitable for any standard server room or networking cabinet, helping to optimize space. With 128 MB DRAM and 64 MB flash memory, this switch is designed to offer a stable system with enough memory to handle the network’s operational requirements and software upgrades.
Finally, investing in Cisco equipment brings the assurance of reputation and quality, with Cisco being a leading brand in networking infrastructures. Their products are known for durability and longer life spans, ensuring that the WS-C2960S-48TS-S is a cost-effective solution in the long run. With dedicated support and regular firmware updates, Cisco helps protect your network from vulnerabilities and keeps your infrastructure up to date with the latest features.
Cisco Catalyst 2960-S Series Switches WS-C2960S-48TS-S is a model, designed for enterprise, midmarket, and branch office networks equally. It has 48 RJ-45 10/100/1000Base-T Network LAN ports and provides LAN Lite feature set.
Quick Specs

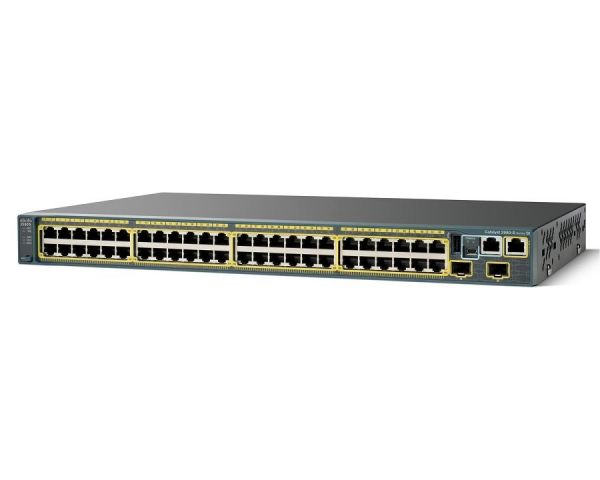

Figure 1 shows the appearance of the WS-C2960S-48TS-S.
Table 1 shows the Quick Spec of the WS-C2960S-48TS-S.
Product Code |
WS-C2960S-48TS-S |
Enclosure Type |
Rack-mountable – 1U |
Feature Set |
LAN Lite |
Uplink Interfaces |
Four 1G Small Form-Factor Pluggable(SFP) |
Downlink Ports |
48 × Ethernet 10/100/1000 ports |
Expansion Slot(s) |
1 (total) / 1 (free) x Stacking Module |
Switching capacity |
176 Gbps |
Forwarding Rate |
74.4 mpps |
DRAM |
128 MB |
Flash Memory |
64 MB |
Dimensions |
44.5 × 38.6 × 4.5 cm |
Package Weight |
9.19 Kg |
Product Details
Figure 2 shows the front panel of the WS-C2960S-48TS-S.
Note:
① |
Mode Button |
⑤ |
RJ45 Console Port |
② |
48 × Ethernet 10/100/1000 ports |
⑥ |
USB mini-Type B (console) Port |
③ |
SFP Module Slots |
⑦ |
USB Type A Port |
④ |
Ethernet Management Port |
Figure 3 shows the back panel of the WS-C2960S-48TS-S.
Note:
① |
1 (total) / 1 (free) x Stacking Module |
③ |
RPS Connector |
② |
Fan Exhaust |
④ |
AC power connector |
The Accessories
Table 2 shows some accessories of the WS-C2960S-48TS-S.
Models |
Description |
C2960S-STACK |
Catalyst 2960S FlexStack Stack Module optional for LAN Base |
GLC-LH-SM |
GE SFP, LC connector LX/LH transceiver |
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
Compare to Similar Items
Table 3 shows the comparison of similar items.
Models |
WS-C2960S-48TS-S |
WS-C2960S-48TS-L |
Ports |
48 × Ethernet 10/100/1000 ports FP) |
48 × Ethernet 10/100/1000 ports FP) |
Switching Capacity |
176 Gbps |
176 Gbps |
Uplinks |
4 x 1G SFP |
4 x 1G SFP |
Feature Set |
LAN Lite |
LAN Base |
Stackable |
Yes |
Yes |
