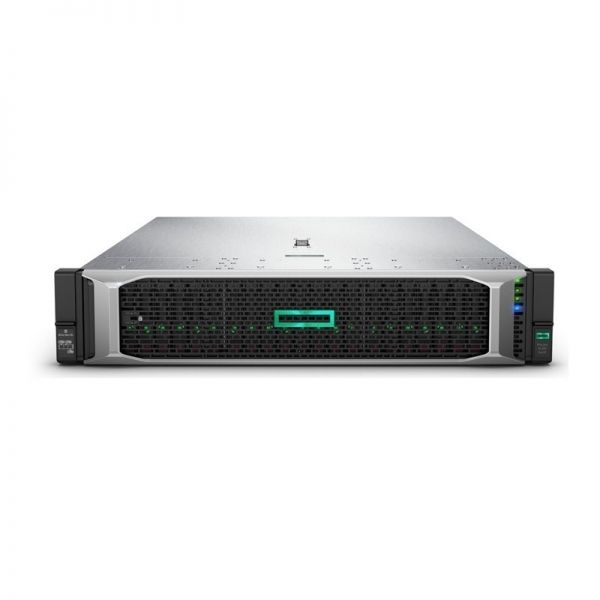

The HPE ProLiant DL380 Gen10 Server model P19720-B21 stands out as an industry-leading solution for a multitude of computing environments. Built with scalability and performance in mind, it provides a 2U chassis that can house up to 2 Intel Xeon processors, delivering robust processing power to tackle demanding enterprise applications and workloads. With the Intel C621 chipset and ample memory capacity which extends up to 3 TB for LRDIMMs, this server is designed to process large amounts of data efficiently, ensuring rapid response times and smooth operation.
Its support for HPE DDR4 SmartMemory enhances error-checking and repair capabilities, increasing the reliability of your data transactions. Businesses that rely on virtualization will benefit greatly from the ProLiant DL380 Gen10’s capacity to optimize resource usage and manage systems effectively. Furthermore, the server’s adaptability does not end in hardware. With intelligent system tuning, workload performance is optimized through customizable settings, paying off in increased agility and reduced operational costs.
Commitment to security is another reason to choose the P19720-B21. The server includes the HPE Silicon Root of Trust technology, which provides a foundation for secure operations and immutable security assurances. In addition to performance and security, the server’s design prioritizes energy efficiency and runs on HPE’s Flexible Slot Power Supplies, reducing power waste and saving on energy expenses.
Fitted with a comprehensive warranty and expert support from HPE, the ProLiant DL380 Gen10 ensures peace of mind with a commitment to durability and service. Whether deploying cloud applications, running containers, or processing big data, this server model is a reliable, high-performance foundation for modern IT infrastructure. Its proven track record and thoughtful engineering make it a smart investment for businesses seeking a server that can evolve alongside their growth and technological needs.
P19720-B21 is an HPE ProLiant DL380 Gen10 8-SFF NC CTO server. Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.
Quick Spec
Table 1 shows the quick spec of DL380 Gen10 8-SFF NC CTO server.
|
Part Number |
P19720-B21 |
|
Description |
HPE ProLiant DL380 Gen10 8-SFF NC CTO server |
|
Form Factor |
2U rack |
|
Processors |
Up to 2 Intel Xeon processors |
|
Chipset |
Intel C621 Chipset |
|
Memory Type |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
|
Memory Maximum capacity |
LRDIMM :3.0 TB, 24 x 128 GB LRDIMM @ 2933 MT/s RDIMM: 1.54 TB, 24 x 64 GB RDIMM @ 2933 MT/s Intel Optane Persistent Memory for HPE: 6.0 TB, 12 X 512 GB Memory Modules @ 2666 MT/s HPE NVDIMMs: 192 GB, 12 x 16 GB NVDIMM @ 2666 MT/s |
Product Details
Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
|
① |
Quick removal access panel |
|
② |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
③ |
Optional Optical drive. Requires Universal Media bay |
|
④ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑤ |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
⑥ |
8 SFF Drive Cage Bay |
|
⑦ |
Serial label pull tag |
|
⑧ |
Power On/Standby button and system power LED button |
|
⑨ |
Health LED |
|
⑩ |
NIC status |
|
⑪ |
UID button |
|
⑫ |
iLO Front Service Port |
|
⑬ |
USB 3.0 |
|
⑭ |
Box 3 |
|
⑮ |
Box 2 |
|
⑯ |
Box 1 |
|
⑰ |
Optional 2 SFF HDD, requires optional Universal Media bay |
|
⑱ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑲ |
Optional front display port (Via Universal Media Bay) |
Figure 2 shows the back view.
Note:
|
① |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
② |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
③ |
Optional serial port |
|
④ |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
⑤ |
Power supply Power connection |
|
⑥ |
Power supply Power LED |
|
⑦ |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
⑧ |
Power supply Power connection |
|
⑨ |
Power supply Power LED |
|
⑩ |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
⑪ |
VGA connector |
|
⑫ |
Embedded 4 x 1GbE Network Adapter |
|
⑬ |
Dedicated iLO management port |
|
⑭ |
USB connectors 3.0 (2) |
|
⑮ |
Unit ID LED |
|
⑯ |
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Parts Options
Table 2 shows the options of P19720-B21.
|
Part Number |
Description |
|
Processors |
|
|
P23547-B21 |
Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL380 Gen10 |
|
P23549-L21 |
Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL380 Gen10 |
|
P23550-L21 |
Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL380 Gen10 |
|
P15968-B21 |
Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL360 Gen10 |
|
P15974-B21 |
Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL360 Gen10 |
|
P15977-B21 |
Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL360 Gen10 |
|
Memory |
|
|
P00922-B21 |
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
P00924-B21 |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
P00926-B21 |
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit |
|
Hard Drive |
|
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) Sc 3yr Wty Digitally Signed Firmware HDD |
|
872481-B21 |
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
870759-B21 |
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Ds Digitally Signed Firmware HDD |
|
881457-B21 |
HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
870757-B21 |
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
P04556-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04560-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04564-B21 |
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04566-B21 |
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04556-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04560-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
Power Supply |
|
|
865408-B21 |
HPE 500W FS Plat Ht Plg LH Pwr Sply Kit |
|
865414-B21 |
HPE 800W FS Plat Ht Plg LH Pwr Sply Kit |
Compare to Similar Items
Table 3 shows the comparison.
|
Part Number |
P19717-B21 |
P19718-B21 |
P19720-B21 |
|
Description |
HPE DL380 Gen10 8LFF NC CTO Svr |
HPE DL380 Gen10 12LFF NC CTO Svr |
HPE DL380 Gen10 8SFF NC CTO Svr |
|
Processors |
Up to 2 Intel Xeon processors |
Up to 2 Intel Xeon processors |
Up to 2 Intel Xeon processors |
|
Chipset |
Intel C621 Chipset |
Intel C621 Chipset |
Intel C621 Chipset |
|
Memory Type |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
|
Hard Drive |
8 LFF |
12 LFF |
8 SFF |
