Investing in the HPE ProLiant DL380 Gen10 Server, model P05524-B21, is a forward-thinking decision for businesses looking for top-level performance, flexibility, and reliability. The server is powered by the efficient Intel® Xeon® 4110 processor, designed to handle substantial workloads with ease. With support for up to 3.0 TB of DDR4 memory, the server can manage demanding applications, making it an excellent choice for virtualization and data-intensive processes.
The HPE Smart Array P408i-a controller allows for a versatile storage setup that meets the needs of various storage requirements, enhancing the server’s ability to adapt to business growth. This flexibility is further underlined by the server’s capability to accommodate a range of drive types including SAS, SATA, and NVMe options.
Energy efficiency is not an afterthought with the server’s 500W redundant power supply, which not only ensures consistent performance but also contributes to lower operational costs. Additionally, HPE’s industry-leading security features guard against data breaches and downtime, providing peace of mind that systems and sensitive information are protected.
For organizations requiring extensive uptime, the DL380 Gen10 server offers redundancy and hot-swappable components to minimize interruptions during maintenance. The server’s compact form factor (8.73 x 44.55 x 67.94 cm) allows for space-efficient deployment in data centers, and at a starting weight of just 14.9 kg, it doesn’t sacrifice portability for power.
Ultimately, the P05524-B21 represents a balanced amalgamation of performance, expandability, and security, making it a smart investment for businesses intent on maintaining a competitive edge in a fast-paced digital environment. Whether for enterprise-level applications or complex databases, the HPE DL380 Gen10 has the versatility to meet current needs while being future-ready.

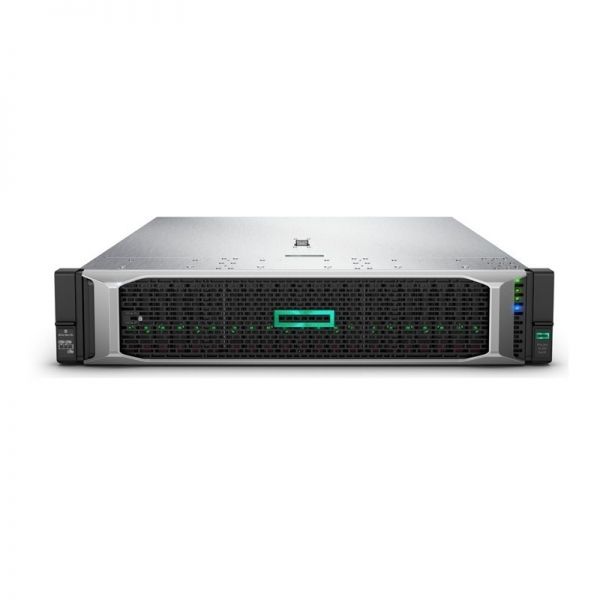

P05524-B21 is an HPE ProLiant DL380 Gen10 4110 1P 16GB-R P408i-a 8SFF 500W RPS Solution Server.
Quick Spec
Table 1 shows the quick spec.
|
Model |
P05524-B21 |
|
Processor |
Intel® Xeon® 4110 (8 core, 2.1 GHz, 11 MB, 85W) |
|
Maximum memory |
3.0 TB with 128 GB DDR4 |
|
Storage controller |
1 HPE Smart Array P408i-a Controller |
|
Dimension |
8.73 x 44.55 x 67.94 cm (3.44 x 17.54 x 26.75 in) |
|
Weight |
14.9 kg (32.75 lb) Minimum: 8 SFF chassis with 1x SFF HDD and 7 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heatsink, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above) 23.6 kg (51.5 lb) Maximum: 12 LFF hard drives (no rear drives), 2x processors, 2x power supplies, 1x Smart Array, 2x Risers installed) |
Product Details
Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
|
â‘ |
Quick removal access panel |
|
â‘¡ |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
â‘¢ |
Optional Optical drive. Requires Universal Media bay |
|
â‘£ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑤ |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
â‘¥ |
8 SFF Drive Cage Bay |
|
⑦ |
Serial label pull tag |
|
⑧ |
Power On/Standby button and system power LED button |
|
⑨ |
Health LED |
|
â‘© |
NIC status |
|
⑪ |
UID button |
|
â‘« |
iLO Front Service Port |
|
⑬ |
USB 3.0 |
|
â‘ |
Box 3 |
|
â‘® |
Box 2 |
|
⑯ |
Box 1 |
|
â‘° |
Optional 2 SFF HDD, requires optional Universal Media bay |
|
⑱ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑲ |
Optional front display port (Via Universal Media Bay) |
Figure 2 shows the back view.
Note:
|
â‘ |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
â‘¡ |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
â‘¢ |
Optional serial port |
|
â‘£ |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
⑤ |
Power supply Power connection |
|
â‘¥ |
Power supply Power LED |
|
⑦ |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
⑧ |
Power supply Power connection |
|
⑨ |
Power supply Power LED |
|
â‘© |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
⑪ |
VGA connector |
|
â‘« |
Embedded 4 x 1GbE Network Adapter |
|
⑬ |
Dedicated iLO management port |
|
â‘ |
USB connectors 3.0 (2) |
|
â‘® |
Unit ID LED |
|
⑯ |
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Supported Hard Drives
Table 2 show the supported hard drives.
|
Model |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
877776-B21 |
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
872481-B21 |
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
Compare to Similar item
Table 3 shows the comparison.
|
Model |
P05524-B21 |
875762-S01 |
|
Processor |
Intel® Xeon® 4110 (8 core, 2.1 GHz, 11 MB, 85W) |
Intel® Xeon® 5120 (14 core, 2.2 GHz, 19.25 MB, 105W) |
|
Maximum memory (LRDIMM) |
3.0 TB with 128 GB DDR4 |
3.0 TB with 128 GB DDR4 |
|
Storage controller |
1 HPE Smart Array P408i-a Controller |
1 HPE Smart Array P408i-a Controller |
Get More Information
Do you have any question about the P05524-B21?
Contact us now via Contact Form or sales@northlandusa.com.
Maximize Your IT Budget with Affordable Quality: P05524-B21 – HPE DL380 Gen10 Server
High-quality technology investments shouldn’t drain your budget. At Northland Systems, the P05524-B21 – HPE ProLiant DL380 Gen10 server epitomizes premium technology that respects your bottom line. This server offers high performance at wholesale prices, underscored by a 100% Low Price Guarantee — a testament to our dedication to delivering value without skimping on quality.
Free Expert Support: A Valuable Asset
Uncertainty in deployment or maintenance is a hurdle you won’t face with us. Our customers benefit from complimentary access to CCIE-certified technical support for Servers > HPE Servers > HPE Rack Servers > HPE ProLiant DL380 Gen10 Servers and beyond. Engage with confidence knowing expert advice is available across multiple platforms, all at no additional cost.
Secure, Flexible Purchasing Experience
Each transaction is enveloped in security and customized flexibility. We prioritize your peace of mind through safe payment gateways and offer multiple, adaptable shipping options. Our secure processes are validated by trust seals from McAfee Secure and VeriSign Secured, guaranteeing a seamless and secure purchasing journey.
Unequivocal Assurance of Authenticity and Condition
The assurance of receiving a genuine HPE Proliant DL380 Gen10 server is paramount. Our inventory complies with the highest standards — original “New Sealed” or optimum “Used / Refurbished” conditions, all rigorously tested by Cisco-certified technicians. Choose authenticity and operational excellence with Northland Systems.
Boost Your Confidence with a Money-Back Guarantee
Trust should never be speculative. Our 100% Money Back Guarantee fortifies customer confidence, ensuring satisfaction with your Servers > HPE Servers > HPE Rack Servers purchase. Your experience with us is risk-free, reinforcing your decision to invest in credible, reliable solutions.
The Northland Systems Edge: Reputation and Discounts
Rooted in the industry since 1997, Northland Systems is your beacon for trust and economic efficiency. We extend substantial discounts on Servers > HPE Servers, setting us apart as your go-to source for HPE ProLiant DL380 Gen10 servers and more. Trust our history of excellence and embrace cost-effectiveness in your IT solutions.
Opt for Pre-owned Hardware and Reap its Benefits
Choosing pre-owned hardware, like the HPE ProLiant DL380 Gen10 servers, translates to tangible benefits including significant cost savings, swift delivery, solid warranty coverage, and environmental sustainability. Maintain system integrity with access to legacy parts, ensuring the longevity and stability of your technology infrastructure.
Selecting the P05524-B21 – HPE DL380 Gen10 Server from Northland Systems means investing wisely in dependable, high-grade infrastructure. It is a choice that promises performance, reliability, and service quality, delivered with assurance and expert support.
