The HPE ProLiant DL360 Gen10 P03634-B21 server delivers uncompromising performance, making it a prime choice for businesses requiring high compute capabilities in a space-efficient design. The inclusion of Intel® Xeon® Scalable processors yields a significant performance uplift, with a 71% improvement in computing speed and a 27% increase in core count compared to previous generations.
Beyond raw performance, the support for HPE DDR4 SmartMemory up to 3.0 TB not only provides substantial memory capacity but also boosts memory performance by up to 66%, enhancing workload efficiency and reliability. The server’s agility extends to storage solutions, offering flexible options including 12 NVDIMMs and 10 NVMe drives, thereby presenting enterprises with rapid data access and storage scalability that meet both current and future demands.
Furthermore, deployment and management of the DL360 Gen10 P03634-B21 are streamlined via HPE OneView and HPE iLO 5, automating essential tasks and substantially easing server management. This automation reduces the need for manual intervention, minimizes downtime, and optimizes operational efficiency. The server’s compact 1U form factor also ensures that it fits seamlessly into space-constrained environments, without sacrificing performance or expandability.
In terms of security, the DL360 Gen10 is engineered with industry-leading safeguards to protect against cyber threats and unauthorized access, safeguarding sensitive data and maintaining business continuity.
Investing in the HPE ProLiant DL360 Gen10 P03634-B21 means benefiting from a tailored configuration that can adapt to diverse workload requirements while delivering top-tier performance, expansibility, and security features. It’s a future-proof solution that offers an optimal balance between efficiency, protection, and return on investment for dynamic and growing business operations.
The HPE ProLiant DL360 Gen10 Server P03634-B21 delivers security, agility and flexibility without compromise. It supports the Intel® Xeon® Scalable processor with up to a 71% performance gain and 27% increase in cores, along with 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 66%. With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.
Quick Spec

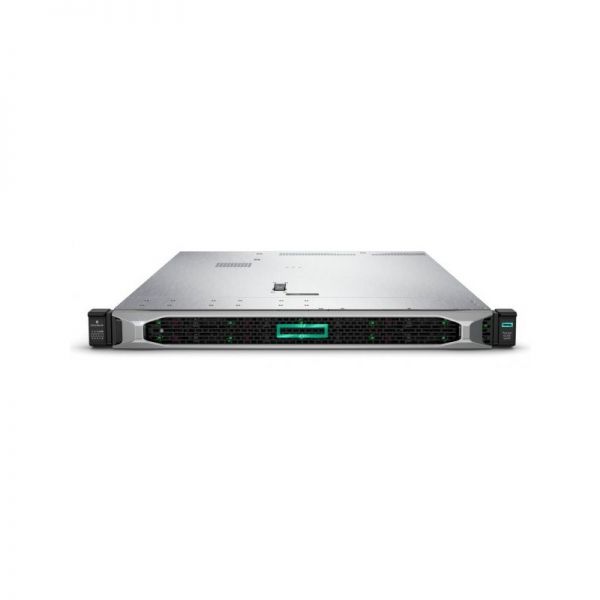

Figure 1 shows the appearance of HPE P03634-B21.
Table 1 shows the quick spec.
|
Product Code |
P03634-B21 |
|
Description |
HPE ProLiant DL360 Gen10 6230 2.1GHz 20-core 1P 32GB-R P408i-a 8SFF 800W PS Performance Server |
|
Number of processors |
1 |
|
Processor core available |
20 |
|
Processor cache |
27.5 MB L3 |
|
Processor speed |
2.1 GHz |
|
Product dimensions (H x W x D) |
17.11 x 27.83 x 1.69 in |
Product Details
Figure 2 shows the front panel of HPE P03634-B21.
Note:
|
â‘ |
Drive support label |
|
â‘¡ |
Quick removal access panel |
|
â‘¢ |
Serial no. label pull tab |
|
â‘£ |
Universal Media Bay Options: Option shown: +2 SFF SAS/SATA (total 10SFF) Option: +2 SFF NVMe drives Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit Option: +2 Dual uFF (4x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank |
|
⑤ |
Power On/Standby button and system power LED |
|
â‘¥ |
Health LED |
|
⑦ |
NIC status LED |
|
⑧ |
UID button/LED |
|
⑨ |
USB 3.0 port |
|
â‘© |
iLO Service Port |
|
⑪ |
Standard 8 SAS/SATA/SSD drive bays |
Figure 3 shows the back panel of HPE P03634-B21.
Note:
|
â‘ |
Slot 1 PCIe 3.0 port Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) |
|
â‘¡ |
Slot 2 PCIe 3.0 |
|
â‘¢ |
Option: Slot 3 PCIe 3.0 (Requires 2nd processor) |
|
â‘£ |
Power Supply 2 |
|
⑤ |
Power Supply 1 |
|
â‘¥ |
VGA port |
|
⑦ |
Embedded 4x 1GbE Adapter |
|
⑧ |
iLO Management Port |
|
⑨ |
Option: Serial Port |
|
â‘© |
USB 3.0 Ports |
|
⑪ |
Option: FlexibleLOM (Shown: 4x 1GbE) |
The Accessories
Table 2 shows the recommended elements for the HPE P03634-B21.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison between HPE P03633-B21 and HPE P03634-B21.
|
Product Code |
P03633-B21 |
P03634-B21 |
|
Description |
HPE ProLiant DL360 Gen10 5218 2.3GHz 16-core 1P 32GB-R P408i-a 8SFF 800W PS Performance Server |
HPE ProLiant DL360 Gen10 6230 2.1GHz 20-core 1P 32GB-R P408i-a 8SFF 800W PS Performance Server |
|
Number of processors |
1 |
1 |
|
Processor core available |
16 |
20 |
|
Processor cache |
22 MB L3 |
27.5 MB L3 |
|
Processor speed |
2.3 GHz |
2.1 GHz |
