Choosing the Cisco Nexus N9K-C9396PX switch for your data center means investing in a powerful, reliable, and future-proof network infrastructure. This switch delivers nonblocking 10 and 40 Gigabit Ethernet capabilities, making it ideal for bandwidth-intensive applications and ensuring a smooth data flow even during peak times. Its predictable high performance, with latency as low as 1-2 microseconds, is crucial for time-sensitive tasks and can significantly increase the responsiveness of your applications and services.
Moreover, the Nexus N9K-C9396PX offers an impressive internal bandwidth of up to 2.56 Tbps. This substantial throughput enables the creation of extensive switch fabrics, catering to anything from smaller setups requiring only a couple of hundred server ports to massive data centers with over 200,000 ports. The integrated shared buffer space further enhances performance, expertly managing port speed mismatches and safeguarding against congestion and packet loss.
Availability is a top priority for any data center. The N9K-C9396PX addresses this need with hot-swappable, redundant power supplies and fan trays, ensuring minimal downtime and maximum uptime for your critical operations. This is complemented by flexible airflow configurations to maintain optimal temperatures and keep hardware running smoothly.
Power efficiency is another key concern. All power supplies in the Nexus 9000 Series, including those used by the N9K-C9396PX, are 80 Plus Platinum rated. This rating signifies lower operational costs and a reduced carbon footprint, leading to a greener, cost-effective data center.
Lastly, the switch is built with expansion and future growth in mind. It sustains a range of advanced optics and comes with multiple accessories that help scale your network as needed, further protecting your investment. With the Cisco N9K-C9396PX, you get a high-density, versatile switch that’s engineered to meet the demands of modern data centers, ensuring that you’re well-equipped for both the challenges of today and the growth of tomorrow.

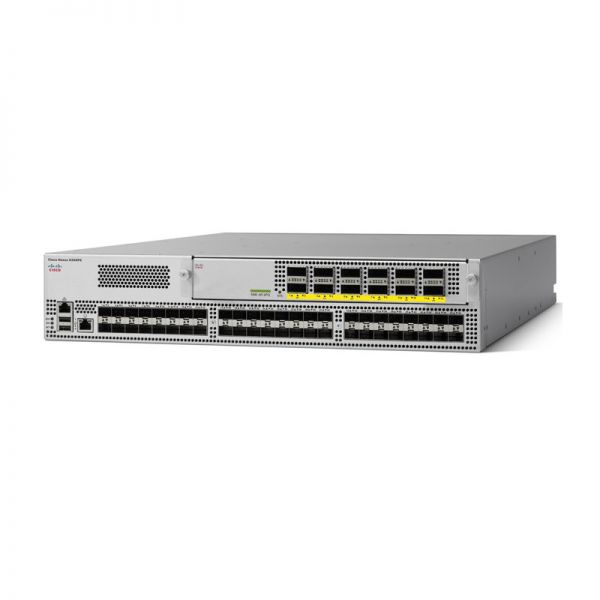

N9K-C9396PX is the Nexus 9300 with 48p 1/10G SFP+ and 12p 40G QSFP. The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
N9K-C9396PX |
|
Ports |
48 fixed SPF+ ports |
|
Supported speeds |
1/10 Gigabit Ethernet speeds |
|
40 Gigabit Ethernet uplink ports |
6 or 12 QFSP+ ports active through the uplink module |
|
Physical (H x W x D) |
3.5 x 17.5 x 22.5 in. |
|
Weight |
22.45 lb (10.2 kg) (without power supplies, fans, or uplink module) |
Product Details
Table 2 shows Cisco Nexus 9300 Platform Switch Features.
|
Feature |
Benefit |
|
Predictable high performance |
Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports. |
|
Increased integrated buffer space |
Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and uplink ports. |
|
Designed for availability |
Hot-swappable, redundant power supplies and fan trays increase availability. |
|
Flexible airflow configuration |
Port-side intake and port-side exhaust airflow configurations are both supported. |
|
CPU, SSD, and memory |
Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance. |
|
Power efficiency |
All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated. |
|
Advanced optics |
Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet with no cable infrastructure upgrade cost. |
The Accessories
Table 3 shows the supported accessories.
|
Model |
Description |
|
N9K-M6PQ-E |
Uplink Module for Nexus 9300, 6p 40G QSFP |
|
N9K-M6PQ |
Uplink Module for Nexus 9300, 6p 40G QSFP |
|
N9K-M12PQ |
Uplink Module for Nexus 9300, 12p 40G QSFP |
|
N9K-M4PC-CFP2 |
Uplink Module for Nexus 9300, 4p 100G |
|
UCSC-PSU-930WDC |
Nexus 9000 930W DC PS, Port-side Intake |
|
UCS-PSU-6332-DC |
Nexus 9000 930W DC PS, Port-side Exhaust |
|
N9K-PUV-1200W |
Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports AC/HVDC |
|
N9K-C9300-FAN2 |
Nexus 93128 & 9396 Fan 2, Port-side Intake |
|
N9K-C9300-FAN2-B |
Nexus 93128 & 9396 Fan 2, Port-side Exhaust |
|
NXA-FAN-30CFM-F |
Nexus 2K/3K/9K Single Fan for 1RU switch, port side exhaust airflow |
|
NXA-FAN-30CFM-B |
Nexus 2K/3K/9K Single Fan for 1RU switch, port side intake airflow |
|
N93-LAN1K9= |
Enhanced L3 including full OSPF, EIGRP, BGP for Nexus 9200/9300 Platform |
Compare to Similar Items
Table 4 shows the comparison.
|
Product Code |
N9K-C92304QC |
N9K-C9396PX |
|
Ports |
56 x 40-Gbps QSFP+ and 8 100-Gbps ports |
48 fixed SPF+ ports |
|
Supported speeds |
10, 40, and 100 Gbps |
1/10 Gigabit Ethernet speeds |
