The Cisco Nexus 5596UP Switch, N5K-C5596UP-FA, offers cutting-edge networking capabilities for modern data centers, demanding both speed and reliability. Built for high-performance computing environments, it delivers comprehensive layer 2 and 3 support with hardware forwarding at 1920 Gbps or 1428 mpps and layer 3 at up to 160 Gbps or 240 mpps. The scalability of its 48 fixed unified ports, coupled with 3 additional expansion slots, allows for ample connectivity and future growth. Reliability is further enhanced through redundant 1100W power supplies and multiple fan modules, ensuring consistent operation. With a compact 2RU form factor, it optimizes rack space while still providing the expansive feature set needed for complex tasks. This switch’s unified port capability provides the flexibility to use any port for either Ethernet or Fibre Channel connectivity, streamlining your infrastructure and reducing overhead. Moreover, the front-to-back airflow design ensures efficient cooling, which is vital for maintaining performance and prolonging the life of the system’s components. Easy management, low latency, and the high reliability associated with the Cisco brand name combine to make the Nexus 5596UP N5K-C5596UP-FA an integral component of any competitive business’s network framework, ultimately optimizing operations and facilitating a higher return on investment. The switch’s advanced features cater to the needs of organizations with intensive data traffic, making it an essential backbone for businesses aiming to maintain competitive edge in the digital transformation era.
N5K-C5596UP-FA is the Cisco Nexus 5596UP Switch, including 48 fixed unified ports, Front-to-Back Airflow, 2 1100W AC Power Supplies, Fan Trays, 3 Expansion Slots.
Quick Specs

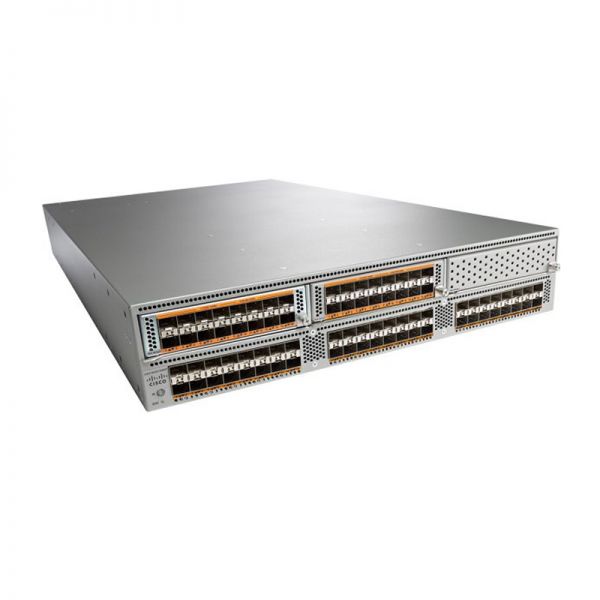

Figure 1 shows the appearance of Cisco Nexus 5596UP Switch. N5K-C5596UP-FA is its chassis.
Table 1 shows the Quick Specs.
Product Code |
N5K-C5596UP-FA |
Performance |
Layer 2 hardware forwarding at 1920 Gbps or 1428 mpps; Layer 3 performance of up to 160 Gbps or 240 mpps |
Form Factor |
2RU |
Fixed Ports |
48 fixed unified ports |
Power Supplies |
2 1100W AC Power Supplies |
Fan Modules |
4 |
Expansion Slots |
3 |
Airflow |
Front-to-Back |
Physical (height x width x depth) |
3.47 x 17.3 x 29.5 in. (8.8 x 43.9 x 74.9 cm) |
Weight(with two 1100W power supplies, 3 unified port expansion modules, and 4 fan modules) |
47.5 lb (21.55 kg) |
Product Details
Figure 2 shows the front panel of Cisco Nexus 5596UP Switch. N5K-C5596UP-FA is its chassis.
Note:
â‘ |
Expansion modules, shown here with three 16-port Universal GEM2 modules (can also have Layer 3 GEM2 modules) |
â‘¡ |
Identifier LED |
â‘¢ |
48 fixed 1- and 10-Gigabit Ethernet ports |
Figure 3 shows the back panel of Cisco Nexus 5596UP Switch. N5K-C5596UP-FA is its chassis.
Note:
â‘ |
Management and console ports (two RJ-45 Ethernet connector ports on the left, a RJ-45 network management connector on the upper right, and a console connector on the lower right) |
â‘¡ |
USB port |
â‘¢ |
Two power supplies |
â‘£ |
Four fan modules |
The Accessories
Table 2 shows the recommended elements for the N5K-C5596UP-FA.
Category |
Model |
Description |
Nexus 5500 Expansion Slot
|
N55-M16UP |
Nexus 5500 Unified Ports Module 16p, Spare |
N55-D160L3-V2 |
Nexus 5596 Layer 3 Expansion Module, Version 2 |
|
N5K Transceiver and Cable
|
SFP-H10GB-CU1M |
10GBASE-CU SFP+ Cable 1 Meter |
SFP-H10GB-ACU7M |
Cisco Direct-Attach Active Optical Cables with SFP+ Connectors, SFP-H10GB-ACU7M |
|
License |
N55-48P-SSK9 |
Nexus 5500 Storage License, 48 Ports |
Compare to Similar Items
Table 3 shows the comparison of N5K-C5596UP-FA, N5K-C5596T-FA and N5K-C5548UP-FA.
Product Code |
N5K-C5596UP-FA |
N5K-C5596T-FA |
N5K-C5548UP-FA |
Form Factor |
2RU |
2RU |
1RU |
Fixed Ports |
48 fixed unified ports |
32x10GT/16xSFP+ Fixed Ports |
32 fixed unified ports |
Power Supplies |
2 1100W AC Power Supplies |
2 1100W AC Power Supplies |
2 750W AC Power Supplies |
Fan Modules |
4 |
4 |
2 |
Expansion Slots |
3 |
3 |
1 |
Airflow |
Front-to-Back |
Back-to-Front |
Front-to-Back |
Get more information
Do you have any question about the N5K-C5596UP-FA?
Contact us now via Contact Form or sales@northlandusa.com.
Opt for N5K-C5596UP-FA for Enhanced Data Center Operations
The Cisco Nexus 5000 Series Switches, particularly the N5K-C5596UP-FA model, delivers high performance, low latency, and a comprehensive feature set for data center aggregation. Purchasing this switch from Northland Systems guarantees not just state-of-the-art technology but a bundle of customer-centric benefits as well.
Affordability Meets Quality
Northland Systems sets the standard for excellence by providing the N5K-C5596UP-FA at wholesale prices. The commitment doesn’t end at affordability; a 100% Low Price Guarantee backs every purchase. Quality is uncompromised, as each product undergoes rigorous testing to ensure reliability and performance.
Access Expert Support for Free
Buying the N5K-C5596UP-FA from Northland Systems allows customers to leverage free expert CCIE technical support. With guidance available through various channels, customers find added value in the professional advice that accompanies their investment, at no additional cost. This support translates into a smoother setup and operational experience with the Cisco Nexus 5000 Switches.
Transaction Security and Flexibility
Secure payment options and flexible shipment policies manifest Northland Systems’ dedication to customer convenience. Certifications like McAfee Secure and VeriSign Secured stand as a testament to the secure handling of every transaction, ensuring peace of mind for customers at every step.
Authenticity and Condition Guarantees
Northland Systems prides itself on providing genuine Cisco products. The N5K-C5596UP-FA is available in “New Sealed” or “Used / Refurbished” conditions, each thoroughly tested by Cisco-certified engineers to verify its authenticity and operational excellence.
Customer Confidence and Money Back Guarantee
The assurance of a 100% Money Back Guarantee empowers customers to trust in the quality of their purchase. This guarantee underpins the confidence Northland Systems places in their array of products, including their Data Center Switches.
Reputation and Attractive Discounts
Since 1997, Northland Systems has been a trusted name in the network equipment industry. They offer significant discounts on the N5K-C5596UP-FA, delivering on both reliability and cost-effectiveness that customers expect from a seasoned supplier.
Benefits of Pre-owned Hardware
- Cost Savings: Pre-owned equipment like the N5K-C5596UP-FA affords customers nearly identical performance at a fraction of the cost of new hardware.
- Expedited Delivery: Access to quick shipment options means your network can be upgraded or maintained with minimal downtime.
- Full Warranty: Purchases come with comprehensive warranty coverage, ensuring long-term service and support.
- Environmental Sustainability: Opting for a pre-owned switch is an environmentally responsible choice, reducing e-waste and promoting reuse of technology resources.
- Legacy Parts Access: Northland Systems provides an inventory of legacy components, helping to maintain and extend the lifecycle of existing data center infrastructures.
Choosing the N5K-C5596UP-FA from Northland Systems isn’t just a purchase—it’s an investment in robust performance, backed by an unwavering commitment to customer satisfaction and support.
