The HPE FlexNetwork JH325A switch is essential for enterprises requiring scalable, resilient network infrastructure. Its 24 PoE+ ports allow for simplified deployment of wired devices with power and data transfer over a single cable, significantly reducing cabling complexity and costs. With 4 GbE and 2 10GbE SFP+ slots, the switch accommodates a high-speed backbone or uplinks, ensuring fast data transfer and efficient bandwidth allocation.
An optional expansion module slot adds flexibility, allowing for 1/10GBASE T or additional SFP+ ports, which enables connectivity customization based on specific network requirements. The switch supports MACsec on ports 1-8, providing enhanced data security on the network. Low latency rates (<5 µs for 1000 Mb, <3 µs for 10 Gbps) ensure that time-sensitive data is prioritized, making the HPE 5130 HI Series ideal for applications like VoIP and video conferencing.
Large buffer and memory capacity (2 GB SDRAM and 512 MB flash) equip the switch to handle considerable network traffic without bottlenecks, ensuring smooth operation even under heavy load. Its throughput capacity up to 154.8 Mpps and routing/switching capacity of 208 Gbps offer robust performance that can grow with an expanding business. The switch’s compliance with the IEEE 802.3at PoE+ standard allows for greater versatility in deploying modern high-power PoE devices such as wireless access points and security cameras.
A compact form factor along with EIA standard 19-inch rack-mounting support makes the JH325A both space-efficient and easy to integrate into existing network setups. The HPE JH325A 5130 HI Series switch is designed for long-term deployment with a system built for future growth and adaptable infrastructure.
HPE FlexNetwork 5130 HI Series switches deliver scalability and resiliency at the access layer of medium and large enterprise campus networks. This JH325A has 24x 10/100/1000 PoE+ ports and 4x GbE SFP slots and 2x 10GbE SFP+ slots. At the back of the unit, is an empty module slot supporting two choices of expansion module, either 2 port 1/10GBASE T module or 2 port SFP+ ports.
Quick Spec

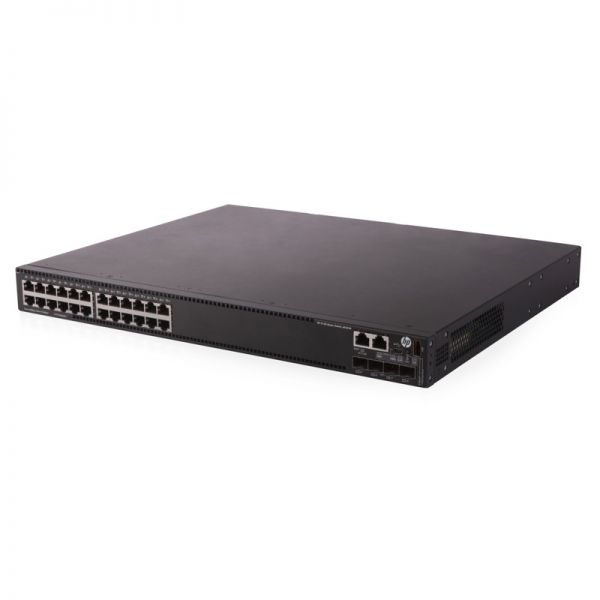

Figure 1 shows the appearance of HPE JH325A.
Table 1 shows the quick spec.
| Product Code | JH325A |
| Type | HPE 5130 24G PoE+ 4SFP+ HI with 1 Interface Slot Switch |
| Ports | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACSec 4 SFP+ 10GbE ports 1 port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module |
| Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
| Mounting | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
| Performance | 1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs Throughput: up to 154.8 Mpps Routing/Switching capacity: 208 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
| Dimensions | 4.37 x 43.99 x 46 cm (1.72 x 17.32 x 18.11 in) (1U height) |
| Weight | 12.5 kg (27.56 lb) |
Product Details
Figure 2 shows the front panel of HPE JH325A.
Note:
| ① | 24 x 10/100/1000Base-T autosensing Ethernet PoE port |
| ② | 4 x 1000Base-X SFP port |
| ③ | USB port |
| ④ | Mini USB console port |
| ⑤ | Console port (CONSOLE) |
| ⑥ | Management Ethernet port |
Figure 3 shows the back panel of HPE JH325A.
Note:
| ① | Grounding screw |
| ② | Interface card (optional) |
| ③ | Fan tray 1 |
| ④ | Fan tray 2 |
| ⑤ | Power supply 1 |
| ⑥ | Power supply 2 (optional) |
Compare to Similar Items
Table 2 shows the comparison.
| Product Code | JH323A | JH324A | JH325A | JH326A |
| Type | HPE 5130 24G 4SFP+ HI with 1 Interface Slot Switch | HPE 5130 48G 4SFP+ HI with 1 Interface Slot Switch | HPE 5130 24G PoE+ 4SFP+ HI with 1 Interface Slot Switch | HPE 5130 48G PoE+ 4SFP+ HI with 1 Interface Slot Switch |
| Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
| Mounting | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware include |
| Performance | 1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs Throughput: up to 154.8 Mpps Routing/Switching capacity: 208 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs Throughput: up to 190.5 Mpps Routing/Switching capacity: 256 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs Throughput: up to 154.8 Mpps Routing/Switching capacity: 208 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
1000 Mb Latency: < 5 µs
10 Gbps Latency: < 3 µs Throughput: up to 190.5 Mpps Routing/Switching capacity: 256 Gbps Routing table size: 32768 entries (IPv4), 16384 entries (IPv6) MAC address table size: 32768 entries |
