The HPE JG937A FlexNetwork 5130 EI Switch delivers a comprehensive set of features for the enterprise environment. Its 48 PoE+ ports allow for flexible power provisioning to devices like VOIP phones, wireless APs, and surveillance cameras. Four SFP+ ports ensure high-bandwidth fiber connectivity, ideal for uplinks or stacking. With HPE’s Intelligent Resilient Fabric (IRF), you can stack up to nine switches for simplified management and scalability.
This switch supports Layer 3 static and RIP routing, enabling robust network segmentation and efficient routing decisions. A substantial PoE budget of 370W means you can power several devices without needing additional power supplies. The 1GB SDRAM and 512MB flash memory provide smooth handling of the device’s software capabilities and firmware storage.
High Mean Time Between Failures (MTBF) stands at 48.3 years, ensuring reliability and reducing the likelihood of downtime. Furthermore, the HPE JG937A supports advanced security features, including access control lists (ACLs), source-port filtering, and ARP protection, securing your network against unauthorized access and threats.
Investing in the HPE JG937A switch also means you’re backed by HPE’s excellent support and warranty, making it a smart investment for businesses seeking to improve network reliability, security, and performance. Whether you’re upgrading your current infrastructure or building a new network, the HPE JG937A provides the features you need to maintain robust network connectivity and efficient operations.
HPE FlexNetwork 5130 EI Series switches are fully managed enterprise class Gigabit switches supporting Layer 3 static routing and RIP routing, IRF stacking up to nine units high, with four built in 10 Gigabit links. This JG937A has 48 x 10/100/1000 PoE+ enabled ports and 4 x 1GbE / 10GbE SFP+ ports for high speed 10 Gigabit or Gigabit fiber connections using optional transceivers.
Quick Spec

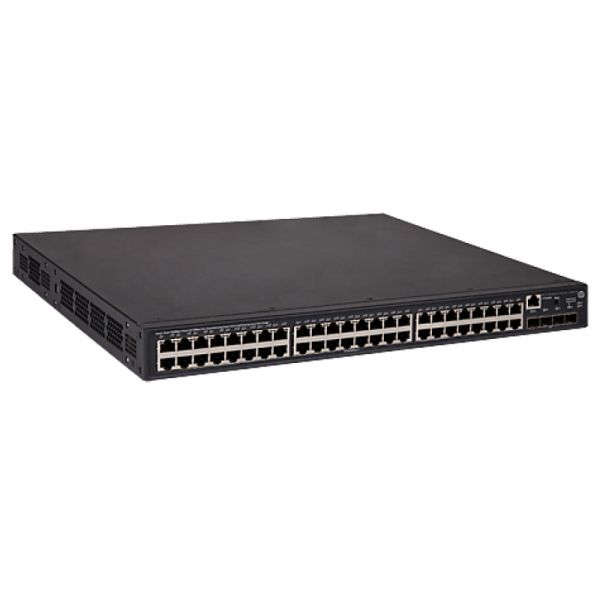

Figure 1 shows the appearance of HPE JG937A.
Table 1 shows the quick spec.
|
Product Code |
JG937A |
|
Type |
HPE FlexNetwork 5130-48G-PoE+-4SFP+ (370W) EI Switch |
|
I/O ports and slots |
48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
Additional ports and slots |
1 x RJ-45 serial console port |
|
Memory and processor |
1 GB SDRAM 512 MB flash packet buffer size: 1.5 MB |
|
Reliability |
MTBF (years): 48.3 |
|
PoE power |
370 W PoE+ |
|
Maximum power rating |
490 W |
|
Dimensions |
4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in) |
|
Weight |
8 kg (17.64 lb) |
Product Details
Figure 2 shows the front panel of HPE JG937A.
Note:
|
① |
48 × 10/100/1000Base-T autosensing Ethernet port |
|
② |
4 × SFP+ port |
|
③ |
Console port |
|
④ |
Port LED mode switching button |
Figure 3 shows the back panel of HPE JG937A.
Note:
|
① |
AC-input power receptacle |
|
② |
Grounding screw |
|
③ |
RPS receptacle |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG932A |
JG933A |
JG934A |
JG936A |
JG937A |
|
Type |
HPE FlexNetwork 5130-24G-4SFP+ EI Switch |
HPE FlexNetwork 5130-24G-SFP-4SFP+ EI Switch |
HPE FlexNetwork 5130-48G-4SFP+ EI Switch |
HPE FlexNetwork 5130-24G-PoE+-4SFP+ (370W) EI Switch |
HPE FlexNetwork 5130-48G-PoE+-4SFP+ (370W) EI Switch |
|
I/O ports and slots |
· 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ·4 x SFP+ fixed 1000/10000 SFP+ ports |
·16 x SFP 100/1000 Mbps ports ·8 x SFP dual-personality ports – 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports ·4 x SFP+ fixed 1000/10000 SFP+ ports |
· 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 x SFP+ fixed 1000/10000 SFP+ ports |
· 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 x SFP+ fixed 1000/10000 SFP+ ports |
· 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 x SFP+ fixed 1000/10000 SFP+ ports |
|
Additional ports and slots |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
1 RJ-45 serial console port |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
|
Memory and processor |
·1 GB SDRAM ·512 MB flash ·packet buffer size: 1.5 MB |
·1 GB SDRAM ·512 MB flash ·packet buffer size: 1.5 MB |
· 1 GB SDRAM · 512 MB flash · packet buffer size: 3 MB |
· 1 GB SDRAM · 512 MB flash · packet buffer size: 1.5 MB |
· 1 GB SDRAM · 512 MB flash · packet buffer size: 1.5 MB |
