Investing in the HPE JG543A 5500 HI Switch is essential for businesses requiring high-performance, secure, and resilient networking. The switch’s 24 SFP Gigabit Ethernet ports, 4 multi-speed RJ-45 ports, and 2 high-speed 10GbE SFP+ ports cater to a range of devices and uplink requirements, providing versatility for both current and future networking needs.
Advanced security features of the HPE JG543A protect your network from threats, with robust access control lists, secure management options, and hardware-based encryption. These features ensure that sensitive data remains secure, which is crucial for compliance with industry regulations.
The switch’s scalable design, offering additional port configurations via expansion modules, allows your network to grow without the need for immediate hardware replacement, safeguarding your investment. The energy-efficient design also reduces operational costs.
Low-latency and high-throughput performance of the JG543A meets the demands of bandwidth-intensive applications, ensuring seamless data flow and improved user experiences. This is particularly important for organizations that rely on real-time data processing and transmission.
HPE’s track record of reliability and comprehensive support services minimizes downtime, with quick resolution of any issues. The switch’s intuitive management tools simplify network administration, allowing for efficient monitoring and maintenance of the network.
Choosing the HPE JG543A for its robustness, scalability, and efficiency will provide long-term benefits to your organization, making it a valuable asset in maintaining a modern, responsive IT infrastructure.
HPE FlexNetwork 5500 HI Series switches are Gigabit switches delivering outstanding resiliency, security, and multiservice support for the edge layer of data center, large campus, and metro Ethernet network. This JG543A has 24 x fixed Gigabit Ethernet SFP ports together with 4 x 10/100/1000 ports. Additionally, the model has 2 x 10 Gigabit SFP+ ports as well as two expansion module slots. Maximum configuration is six 10GbE uplinks or 12 10/100/1000 ports or 38 x 100/1000 SFP ports.
Quick Spec

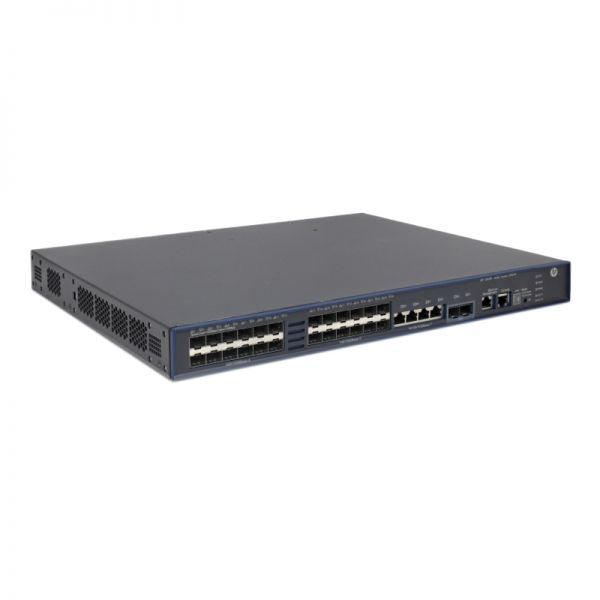

Figure 1 shows the appearance of HPE JG543A.
Table 1 shows the quick spec.
|
Product Code |
JG543A |
|
Type |
HP 5500-24G-SFP HI Switch with 2 Interface Slots |
|
Ports |
24 fixed Gigabit Ethernet SFP ports 4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 12 autosensing 10/100/1000 ports, with optional module |
|
Additional ports and slots |
1 RJ-45 serial console port 1 RJ-45 out-of-band management port |
|
Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
|
Memory and processor |
1GB SDRAM, 512MB flash Packet buffer size: 6MB |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs Throughput: up to 130.9 Mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
|
Dimensions (W x D x H) |
4.37 x 43.99 x 35.99 cm (1.72 x 17.32 x 14.17 in) |
|
Weight |
10.5 kg (23.15 lb) |
Product Details
Figure 2 shows the front panel of HPE JG543A.
Note:
|
â‘ |
24 x 100/1000 Base-X SFP port |
|
â‘¡ |
2 x SFP+ port |
|
â‘¢ |
Management Ethernet port (Management |
|
â‘£ |
Console port |
|
⑤ |
Seven-segment LED (Unit) |
|
â‘¥ |
Port LED mode switching button |
|
⑦ |
System status LED (SYS) Power supply 1 status LED (PWR1) Power supply 2 status LED (PWR2) Interface card 1 status LED (SLOT1) Interface card 2 status LED (SLOT2) |
|
⑧ |
4 x 10/100/1000 Base-T auto-sensing Ethernet port |
Figure 3 shows the back panel of HPE JG543A.
Note:
|
â‘ |
Power supply slot 1 (PWR1) |
|
â‘¡ |
Power supply slot 2 (PWR2) |
|
â‘¢ |
Interface card slot 1 (SLOT1) (The module must be purchased alone.) |
|
â‘£ |
Interface card slot 2 (SLOT2) (The module must be purchased alone.) |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG311A |
JG312A |
JG541A |
JG542A |
JG543A |
|
Type |
HP 5500-24G-4SFP HI Switch with 2 interface Slots |
HP 5500-48G-4SFP HI Switch with 2 interface Slots |
HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots |
HP 5500-48G-PoE+-4SFP HI Switch with 2 Interface Slots |
HP 5500-24G-SFP HI Switch with 2 Interface Slots |
|
Performance |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 130.9 mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 166.6 Mp/s Routing/Switching capacity: 224 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 130.9 Mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs Throughput: up to 166.6 Mp/s Routing/Switching capacity: 224 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs Throughput: up to 130.9 Mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
