Choosing the HPE JG311A 5500 HI Switch offers multiple benefits for any organization seeking to enhance its network infrastructure. With its 24 Gigabit Ethernet ports, this switch enables high-speed connections across a network, which is ideal for environments with robust traffic handling requirements. The additional Gigabit and 10 Gigabit SFP ports provide flexible uplink options, which is crucial for a growing business that might need high-speed links to other networks or devices.
The JG311A’s security features make it an invaluable asset for organizations concerned about protecting their data. It provides a comprehensive set of access control and authentication features that ensure only authorized users can access the network. This protection extends to preventing unauthorized network intrusions, thanks to its robust security protocols.
Moreover, the switch’s ability to support multiple services makes it particularly versatile. It can handle data, voice, and video traffic, enabling organizations to use a single switch for differing types of network traffic, which simplifies the network design and eases management tasks. Furthermore, the flexibility of supporting additional modules means that businesses can expand the switch’s functionality as their needs grow without having to replace the entire device.
Resiliency is another critical factor the HPE JG311A 5500 HI Switch provides. With support for redundant power supplies and easy-to-implement stacking capabilities, network downtime is minimized, which is essential for maintaining business continuity.
Performance and efficiency are where the JG311A truly shines, with low latency rates facilitating swift data packet processing, ensuring applications run smoothly, and maintaining high productivity levels within the workplace.
Overall, the HPE JG311A switch stands out for its exceptional performance, robust security, and scalable design, making it an excellent investment for any enterprise network.
HPE FlexNetwork 5500 HI Series switches are Gigabit switches delivering outstanding resiliency, security, and multiservice support for the edge layer of data center, large campus, and metro Ethernet network. This JG311A has 24 x 10/100/1000 ports. Additionally, the model has 4 x fixed Gigabit Ethernet SFP ports and 2 x 10 Gigabit SFP+ ports as well as two expansion module slots.
Quick Spec

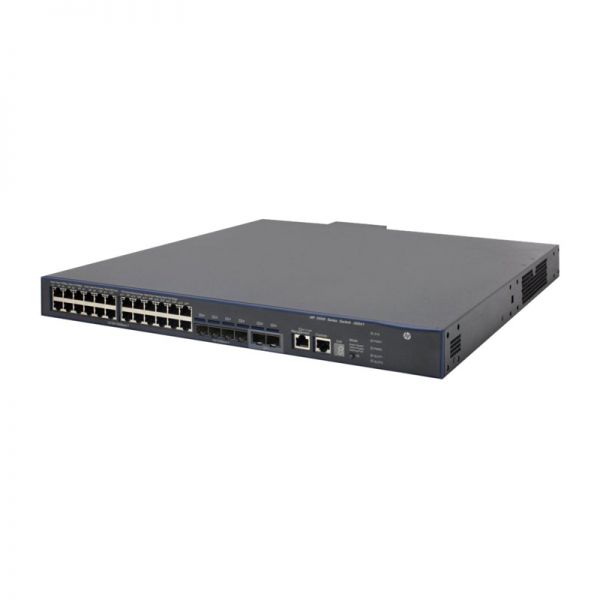

Figure 1 shows the appearance of HPE JG311A.
Table 1 shows the quick spec.
Product Code |
JG311A |
Type |
HP 5500-24G-4SFP HI Switch with 2 interface Slots |
Ports |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 38 autosensing 100/1000 ports, with optional module |
Additional ports and slots |
1 RJ-45 serial console port 1 RJ-45 out-of-band management port |
Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
Memory and processor |
1 GB SDRAM Packet buffer size: 3 MB 512 MB flash |
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
Performance |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 130.9 mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
Dimensions (W x D x H) |
4.37 x 44 x 36 cm (1.72 x 17.32 x 14.17 in) (1U height) |
Weight |
7.5 kg (16.53 lb) |
Product Details
Figure 2 shows the front panel of HPE JG311A.
Note:
â‘ |
24 × 10/100/1000 Base-T auto-sensing Ethernet port |
â‘¡ |
4 x 100/1000 Base-X SFP ports |
â‘¢ |
2 x SFP+ ports |
â‘£ |
Management Ethernet port (Management) |
⑤ |
Console port |
â‘¥ |
Seven-segment LED (Unit) |
⑦ |
Port LED mode switching button |
⑧ |
System status LED (SYS), Power supply 1 status LED (PWR1), Power supply 2 status LED (PWR2), Interface card 1 status LED (SLOT1), Interface card 2 status LED (SLOT2) |
Figure 3 shows the back panel of HPE JG311A.
Note:
â‘ |
Power supply slot 1 (PWR1) |
â‘¡ |
Power supply slot 2 (PWR2) |
â‘¢ |
Interface card slot 1 (SLOT1) (The module must be purchased alone.) |
â‘£ |
Interface card slot 2 (SLOT2) (The module must be purchased alone.) |
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
JG311A |
JG312A |
JG541A |
JG542A |
JG543A |
Type |
HP 5500-24G-4SFP HI Switch with 2 interface Slots |
HP 5500-48G-4SFP HI Switch with 2 interface Slots |
HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots |
HP 5500-48G-PoE+-4SFP HI Switch with 2 Interface Slots |
HP 5500-24G-SFP HI Switch with 2 Interface Slots |
Performance |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 130.9 mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 166.6 Mp/s Routing/Switching capacity: 224 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gb/s Latency: < 3 µs Throughput: up to 130.9 Mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs Throughput: up to 166.6 Mp/s Routing/Switching capacity: 224 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs Throughput: up to 130.9 Mp/s Routing/Switching capacity: 176 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
