Choosing the Ruckus ICX 7150-C12P-2X1G switch brings numerous advantages to any small or mid-sized enterprise seeking network efficiency and scalability. Its 12 Gigabit Ethernet ports, combined with the Power over Ethernet Plus (PoE+) capabilities, make it ideal for powering a range of network devices, such as wireless access points and surveillance cameras, without the need for additional cabling. Moreover, the switch’s 124 W PoE budget ensures sufficient power distribution across the network.
Network administrators will appreciate the basic Layer 3 features that provide efficient routing and RIP, enabling seamless integration into a more complex network infrastructure. With the potential for upgradability to 10 GbE through licensing, the switch offers a path for future expansion that protects your investment as your network demands grow.
Advanced stacking support is another standout feature of the ICX 7150-C12P-2X1G, allowing for impressive flexibility and simplified management. By connecting multiple switches, users can expand their network while maintaining streamlined control as if they were a single entity. Ruckus’ Campus Fabric technology further enhances this, delivering the performance and scalability of a chassis-based switch with the cost-effectiveness of a stackable solution.
Reliability is also a key consideration, and this switch doesn’t disappoint, with enterprise-class availability features designed to minimize downtime and ensure continuous operation. Hot-insertion and removal of stack members, hitless stack failover, and in-service software upgrades contribute to maintaining uninterrupted service.
In summary, the Ruckus ICX 7150-C12P-2X1G switch is a smart, practical investment for businesses looking to improve their network’s performance, reliability, and overall manageability. Its robust feature set positions it as a key component for a future-proof, high-performing network infrastructure.
Ruckus ICX 7150 Compact Switch, 12×10/100/1000 Mbps PoE+ ports, 2×1 GbE RJ45 uplink-ports, 2×1 GbE SFP uplink-ports upgradable to 2×10 GbE SFP+ with license. 124 W PoE budget, basic Layer 3 (static routing and RIP).
Quick Specs

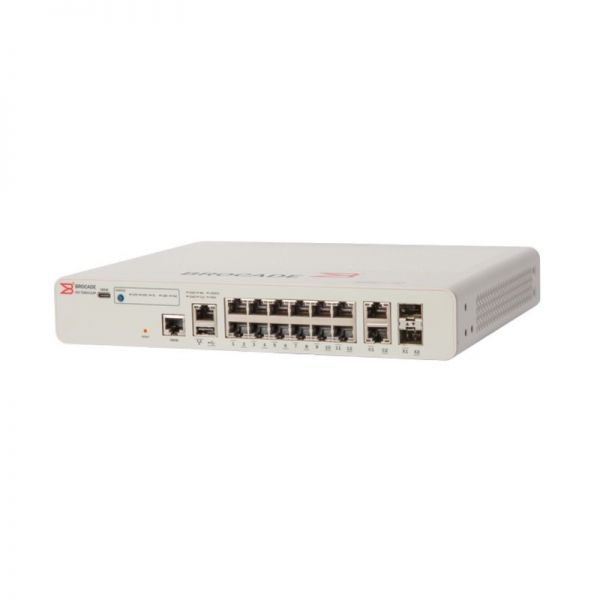

Figure 1 shows the appearance of ICX7150-C12P-2X1G.
Table 1 shows the Quick Specs.
|
Product Code |
ICX7150-C12P-2X1G |
|
Width |
10.6 in |
|
Depth |
8.4 in |
|
Height |
1.7 in |
|
Enclosure Type |
Desktop 1U |
|
Device Type |
Switch – 12 ports – L3 – managed – stackable |
|
Enclosure Type |
Desktop 1U |
|
Max Units In A Stack |
8 |
|
Power Device |
Internal power supply |
|
Installed Qty |
1 (installed) / 1 (max) |
|
Power Provided |
150 Watt |
Product Details
Figure 2 shows the front panel of ICX7150-C12P-2X1G.
Figure 3 shows the back panel of ICX7150-C12P-2X1G.
ICX7150-C12P-2X1G provides these features:
- Ruckus Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost of Ownership (TCO).
- Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost effectiveness to then next level, including:
- Stacking on standard Ethernet ports
- Long-distance stacking
- No hardware module require for stacking
- In Service Software Upgrade (ISSU) to minimize downtime
- Superior scalability with the industry-leading number of switches per stack
- Stacking at the access, aggregation and core layers
- Enterprise-Class Availability to improve resiliency and minimize downtime, including:
- Hitless stack failover
- Hot-insertion/removal of stack members
- Redundant power supplies
- In Service Software Upgrades for switch stacks
- On-boarding and security policies across ICX switches and wireless networks.
- OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same port for Software Defined Network (SDN) enabled programmatic control of the network
- Open Standards based management, monitoring and authentication
- sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network congestion
- Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP), and SNMPv3
- Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure operator access
- LLDP and LLDP-MED protocol support for configuring, discovering, and managing network infrastructure such as QoS, security policies, VLAN assignments, PoE power levels, and service priorities
Compare to Similar Items
Table 2 shows the comparison of ICX7150 series.
|
Series |
ICX7150 |
ICX7250 |
|
Switching capacity (max) |
180 Gbps |
256 Gbps |
|
1 GbE RJ-45 ports |
24 or 48 +2 |
24 or 48 |
|
1 GbE SFP ports |
4 |
8 |
|
10 GbE SFP+ ports (max) |
4 |
8 |
|
Aggregated stack bandwidth |
480Gbps |
480Gbps |
|
PoE Power Budget (max) |
740 W |
1480 W |
|
Switches per stack (max) |
12 |
12 |
