Investing in the HPE Aruba AP555 Access Point JZ356A means equipping your network with unparalleled performance capabilities to meet modern wireless demands. As a next-generation Wi-Fi 6 (802.11ax) device, the AP555 offers significantly higher throughput, catering to dense environments where numerous devices require simultaneous high-speed connections. This access point operates on both 2.4 GHz and 5 GHz bands, which allows flexibility and improved frequency usage.
It stands out with OFDMA technology, facilitating efficient utilization of the wireless spectrum, and thus better handling of multiple device connections with reduced latency. The AP555 is also IoT-ready, with integrated Bluetooth 5 support, enabling the use of BLE devices and providing a platform for IoT applications to thrive.
Regarding power management, the AP555 includes Aruba Intelligent Power Monitoring (IPM) that places strict controls on power usage while maintaining high-efficiency operation, perfect for organizations mindful of energy costs. This power management also ensures compatibility with a variety of PoE infrastructures, which is ideal for upgrading network hardware progressively.
Durability is another advantage, thanks to its robust design and ability for a common access point mount. It’s easy to install and integrates seamlessly into existing Aruba network infrastructures, which is a bonus for IT teams already familiar with the brand’s ecosystem.
Finally, the purchase of the AP555 is future-proofing your network, ensuring that as more devices become Wi-Fi 6 compatible, your network infrastructure won’t be a bottleneck, but instead will uplift the user experience with fast, reliable, and secure wireless connectivity.
The JZ356A uses 802.11ax features to simultaneously serve multiple clients and prioritize different types of traffic to increase data rates for both individual applications and devices, and the overall network.
Quick Specs

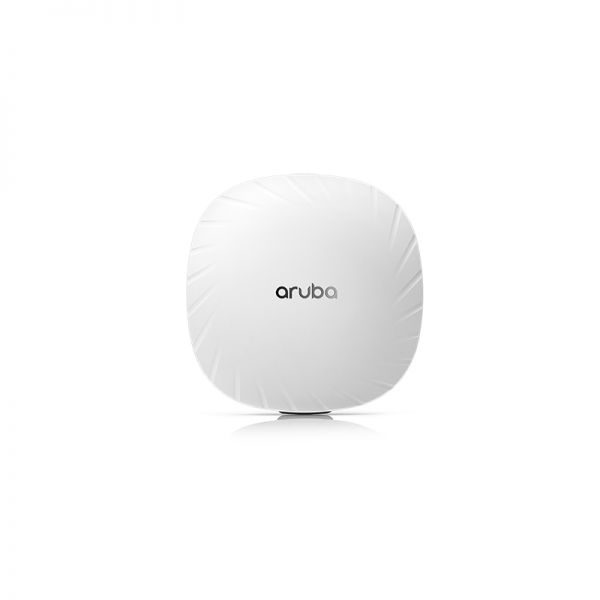

Figure 1 shows the appearance of JZ356A.
Table 1 shows the Quick Specs.
|
Product Code |
JZ356A |
|
Frequency Band |
2.40 GHz 5 GHz |
|
Wireless LAN Standard |
802.11ax |
|
Bluetooth Standard
|
Bluetooth 5 |
|
Ethernet Technology |
5 Gigabit Ethernet 2.5 Gigabit Ethernet |
|
USB |
Yes |
|
Product Dimensions (imperial) |
2.3 x 10.2 x 10.2 in |
Product Details
Figure 2 shows the front panel of JZ356A.
Note:
|
① |
Flagship tri-band Wi-Fi 6 radio |
|
② |
Integrated IoT radio |
Figure 3 shows the back panel of JZ356A.
Note:
|
① |
Dual-5G Smart-Rate PoE ports |
|
② |
Common Access Point Mount |
|
③ |
DC power and USB console |
Unsurpassed Performance
- The Aruba 550 Series Campus Access Points with 802.11ax technology efficiently and simultaneously serves multiple clients, increasing data rates for both individual devices and as an overall system.
- Multi-user transmission with downlink and uplink Orthogonal Frequency Division Multiple Access (OFDMA) increases user data rates and reduces latency, especially for large numbers of devices with short frames or low data-rate requirements, such as voice and IoT devices.
- Multi-user capability with downlink multi-user MIMO improves network capacity by allowing multiple devices to transmit simultaneously.
- The Aruba ClientMatch technology will automatically attempt to group 802.11ax capable devices onto available AP radios with equivalent capabilities, so that the performance benefits of OFDMA are maximized. This means increased network performance and a boost in network capacity.
- In the optional tri-radio operating mode, the 5GHz radio is split up into two independent 4×4 MIMO radios with up to four spatial streams each. This enables even higher numbers of simultaneously connected client devices.
Smart Power Management
- The Aruba 550 Series Campus Access Points includes Aruba Intelligent Power Monitoring (IPM) which allows for a gradual upgrade of switching by allowing the APs to operate if there is not enough Power over Ethernet ( PoE) power.
- This feature enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit.
- Aruba’s Smart PoE allows the existing infrastructure to power up APs. Smart PoE enables to configure two PoE ports to either aggregate their power (more power available) or use one as a redundant PoE power.
- As higher-performance 802.11ax access points drive more power consumption, Aruba NetInsight Green AP feature allows the 550 series access points to draw less power when it’s not being used, such as evenings when the buildings are empty.
IoT and Location Ready
- The Aruba 550 Series Campus Access Points provides unique benefits for IoT devices from dedicated channels in OFDMA allowing for simultaneous transmission of IoT connections with low latency, to power saving options with Target Wake Time (TWT) to saves battery life.
- The 550 series supports an integrated Bluetooth Low-Energy (BLE) and Zigbee radio, as well as a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices and for implementing location services.
Recommended Options
Table 2 shows the recommended elements for the JZ356A.
|
Model |
Description |
|
R3K01A |
AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector |
Compare to Similar Items
Table 3 shows the comparison of JZ356A.
|
Model |
JZ356A |
Q9H62A |
|
SW type |
Unified |
Unified |
|
Wi-Fi generation |
802.11ax |
802.11ax |
|
Radio MIMO type |
4×4:4 (2.4GHz) 8×8:8 or dual 4×4:4 (5GHz) |
2×2:2 (2.4GHz) 4×4:4 (5GHz) |
|
Supported bandwidths |
20/40 (2.4GHz) 20/40/80/160 (5GHz) |
20/40 (2.4GHz) 20/40/80/160 (5GHz) |
|
Highest order modulation |
1024-QAM |
1024-QAM |
|
Integrated antennas |
12x omni downtilt |
6x omni downtilt (AP-515) |
Get More Information
Do you have any question about the JZ356A?
Contact us now via Contact Form or sales@northlandusa.com.
HPE JZ356A – Aruba AP555 Access Point Features
The HPE JZ356A – Aruba AP555 Access Point is a state-of-the-art device engineered to support Wi-Fi 6 (802.11ax) standards, offering high efficiency, improved security, and superior capacity for intensive workload demands in crowded environments. It is equipped with advanced features such as Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO, and intelligent power management, making it ideal for enterprises requiring robust, high-speed wireless connectivity.
