The HPE JL072A Aruba 3810 Switch Series is ideal for businesses needing a robust network backbone. Its features include 48 gigabit RJ-45 ports, expansion for additional SFP+ or 40GbE ports, and a high-throughput of up to 190.5 million packets per second, ensuring smooth data traffic management. The open module slot and stacking module slot offer scalability, making it future-proof. A replaceable fan tray and optional redundant power supplies ensure continuous operation and reliability. With MACSec support, it ensures secure encrypted communication, important for sensitive data transmission. By providing advanced network features, energy-efficient design, and the quality assurance of HPE, the JL072A strikes the balance between performance, security, and cost-effectiveness. It’s designed to handle the demands of a growing enterprise, offering long-term investment protection with easy upgradability and a focus on network efficiency. Whether upgrading an existing infrastructure or deploying a new network, the HPE JL072A offers the adaptability and performance required for modern business applications.
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL072A has 48 x 10/100/1000 ports together with 1 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies; power supplies are ordered separately. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.
Quick Spec

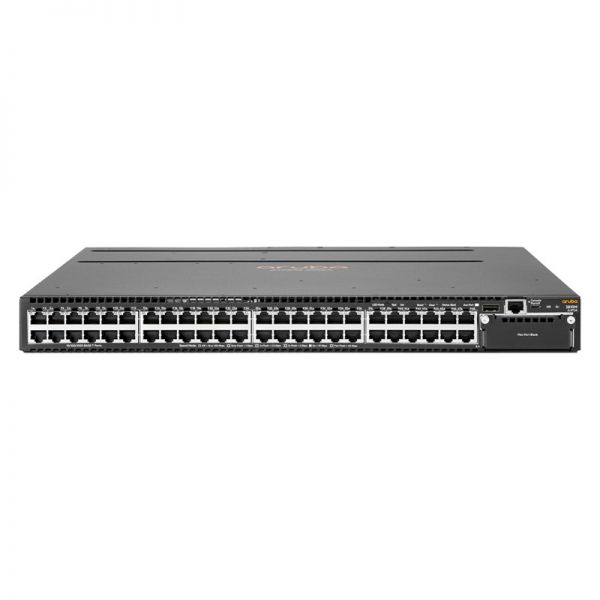

Figure 1 shows the appearance of Aruba JL072A.
Table 1 shows the quick spec.
|
Product Code |
JL072A |
|
Type |
Aruba 3810M 48G 1-slot Switch |
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module |
|
Additional ports and slots |
1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B) |
|
Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
|
Throughput: |
Up to 190.5 Mp/s (64-byte packets) |
|
Dimensions (H x W x D) |
4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height) |
Product Details
Figure 2 shows the front panel of Aruba JL072A.
Note:
|
① |
48 × 10/100/1000Base-T RJ-45 Ports |
|
② |
1 × Flex port Module expansion slot |
|
③ |
Micro USB Console |
|
④ |
RJ Serial Console |
|
⑤ |
USB/Auxiliary Port |
· There are Stacking Module Slot, Management/OOBM port, AC Power connector/Power Supply slot 1 and Redundant Power Supply slot 2 on the back panel.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JL071A |
JL072A |
JL073A |
|
Type |
Aruba 3810M 24G 1-slot Switch |
Aruba 3810M 48G 1-slot Switch |
Aruba 3810M 24G PoE+ 1-slot Switch |
|
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only Ports 1 – 24 support MACSec Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only Ports 1 – 48 support MACSec Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module |
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only Ports 1 – 24 support MACSec 1 open module slot Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module |
|
Throughput |
Up to 95.2 Mp/s (64-byte packets) |
Up to 190.5 Mp/s (64-byte packets) |
Up to 95.2 Mp/s (64-byte packets) |
Comparison Download
[PDF] Comparison: Cisco Switches vs. HPE/Aruba Switches.pdf
Get more information
Do you have any question about the JL072A?
Contact us now via Contact Form or sales@northlandusa.com.
Experience Unmatched Value with the HPE JL072A – Aruba 3810 Switch at Northland Systems
The HPE JL072A – Aruba 3810 Switch stands out with its advanced features, catering to the needs of modern network environments. When you choose to purchase from Northland Systems, you’re not only securing cutting-edge network technology but also numerous benefits that enhance your investment’s value.
Affordability Meets Quality
Northland Systems outshines competitors by pairing high-quality networking equipment with wholesale pricing. Their 100% Low Price Guarantee ensures that you receive the best deal without sacrificing product integrity. Whether you need a “New Sealed” or “Used / Refurbished” Aruba 3810 series switch, each device is rigorously tested for peak performance.
Complimentary Expertise
Unlock the potential of the Aruba 3810 with free CCIE technical support. Northland Systems provides unparalleled guidance, helping you every step of the way, from setup to optimization, without any additional charges – a true testament to their dedication to customer satisfaction.
Secured and Tailored Transactions
Northland Systems sets the standard for a secure and personalized shopping experience. With a foundation of trust established by certifications from McAfee Secure and VeriSign Secured, each transaction offers peace of mind. The flexibility in payment and shipping options adds to the convenience of acquiring your HPE Aruba switch.
Guaranteed Authenticity and Excellence
Each HPE JL072A switch is assured to be an authentic, genuine product. Purchasing from Northland Systems means receiving hardware that has passed extensive testing by certified Cisco engineers, guaranteeing reliability whether it’s new or refurbished.
Reinforced Customer Confidence
The commitment to customer trust is further amplified with Northland Systems’ 100% Money Back Guarantee. This pledge allows you to invest with confidence, knowing that your satisfaction is paramount.
Established Reputation and Discounts
Leverage the advantages that come from over two decades of experience. Since 1997, Northland Systems has been serving the industry, which translates to substantial discounts for customers. Partnering with them means benefiting from a heritage of reliability and cost-effectiveness.
The Advantages of Pre-owned Hardware
Choosing pre-owned hardware like the Aruba 3810 series switches from Northland Systems can result in significant cost savings and faster delivery times. Additionally, a full warranty ensures peace of mind, while the availability of legacy parts supports long-term network planning. Opting for refurbished equipment also aligns with eco-friendly practices and contributes to environmental sustainability.
In the realm of Switches > HPE Switches > Aruba Switches, finding the right balance between quality, support, and value is critical. Northland Systems delivers on all fronts, making the HPE JL072A – Aruba 3810 Switch an exceptional choice for businesses seeking to enhance their network infrastructure. Choose Northland Systems and future-proof your networking investment with confidence.
