The HPE OfficeConnect JG960A switch is an asset for small and medium-sized businesses requiring high-speed network connectivity and secure data handling. Its 24 Gigabit Ethernet ports ensure a reliable high-speed wired connection for multiple devices, ideal for businesses with substantial network traffic. With two 10GBASE-T copper ports and two SFP+ ports, the JG960A enables high-speed connections to servers or network backbones without performance bottlenecks. True stacking capability allows for managing multiple units as a single entity, reducing the complexity of network management. The switch’s Layer 3 static routing supports efficient traffic routing, conserving network resources, and enhancing overall network performance. Equipped with security features like Access Control Lists and 802.1X network login, it provides a secure networking environment protecting sensitive data from unauthorized access. Additionally, spanning-tree protocols and attack protection mean network uptime is maximized and reliability is never in question. With its solid throughput of 95.2 Mpps and the routing/switching capacity of 128 Gbps, even bandwidth-intensive tasks are handled with ease, making sure your business operations run uninterrupted. The switch’s manageable size, weighing just 3 kg, and its 1U height make it a space-saving device suitable for rack-mounted setups. The product’s inclusion in the HPE OfficeConnect portfolio ensures it comes with the reliability and support synonymous with Hewlett Packard Enterprise, a trusted name in business networking solutions. Investing in the HPE JG960A means a commitment to a high-performance, secure, and efficiently managed network that is fundamental to modern business success.
HPE OfficeConnect 1950 Series switches are HPE’s most advanced high performance web managed “smart” switches with Gigabit ports and 10 Gigabit uplinks. This JG960A has 24 x 10/100/1000 ports plus two 10GBASE T copper ports and two SFP+ ports for SFP+/SFP fiber connections. Key features include true stacking, Layer 3 static routing, Access Control Lists and 802.1X network login. Additional features include three levels of Spanning Tree Protocol — STP, RSTP, MSTP — IPv4/IPv6 management and routing, STP root guard, and ARP and DOS attack protection. Part of the OfficeConnect portfolio of small business networking products from Hewlett Packard Enterprise.
Quick Spec
Figure 1 shows the appearance of HPE JG960A.
Table 1 shows the quick spec.
|
Product Code |
JG960A |
|
Type |
HPE OfficeConnect 1950 24G 2SFP+ 2XGT Switch |
|
Ports |
· 24 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) · 2 SFP+ fixed 1000/10000 SFP+ ports · 2 RJ-45 1/10GBASE-T ports |
|
Throughput |
up to 95.2 Mpps (64-byte packets) |
|
Routing/Switching capacity |
128 Gbps |
|
Dimensions (W x D x H) |
4.4 x 43.6 x 16 cm (1.73 x 17.17 x 6.3 in) (1U height) |
|
Weight |
3 kg (6.61 lb) |
Product Details

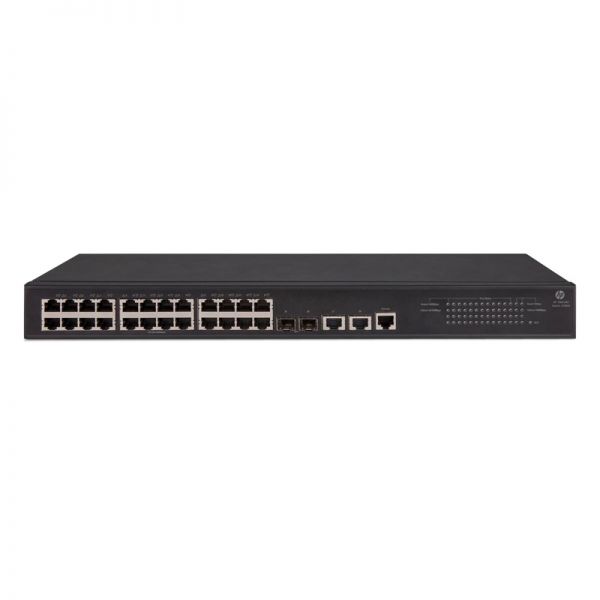

Figure 2 shows the front panel of HPE JG960A.
Note:
|
â‘ |
24 × 10/100/1000Base-T auto-sensing Ethernet port |
|
â‘¡ |
2 × SFP+ port |
|
â‘¢ |
2 × 1/10GBase-T auto-sensing Ethernet port |
|
â‘£ |
Console port |
|
⑤ |
1/10GBase-T Ethernet port LED |
|
â‘¥ |
LEDs |
|
⑦ |
SFP+ port LED |
|
⑧ |
10/100/1000Base-T Ethernet port LED |
Figure 3 shows the back panel of HPE JG960A.
Note:
|
â‘ |
AC power connector |
|
â‘¡ |
Grounding screw |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG960A |
JG961A |
JG962A |
JG963A |
|
Type |
HPE OfficeConnect 1950 24G 2SFP+ 2XGT Switch |
HPE OfficeConnect 1950 48G 2SFP+ 2XGT Switch |
HPE OfficeConnect 1950 24G 2SFP+ 2XGT PoE+(370W) Switch |
HPE OfficeConnect 1950 48G 2SFP+ 2XGT PoE+(370W) Switch |
|
PoE power |
N/A |
N/A |
370 W PoE+2 |
370 W PoE+2 |
|
Throughput |
up to 95.2 Mpps (64-byte packets) |
up to 130.9 Mpps (64-byte packets) |
up to 95.2 Mpps (64-byte packets) |
up to 130.9 Mpps (64-byte packets) |
|
Routing/Switching capacity |
128 Gbps |
176 Gbps |
128 Gbps |
176 Gbps |
