The Juniper EX3400-48T Ethernet Switch is an optimal choice for enterprise networks requiring robust performance, reliability, and scalability. It fulfills demanding data, voice, and video services by providing an impressive backplane speed of 160 Gbps and a data rate of 336 Gbps, ensuring efficient traffic management and low latency. With the capacity for 250 Mpps throughput, the switch can handle large amounts of data without slowdowns.
Designed with a compact, fixed-configuration 1U form factor, the EX3400-48T is space-efficient for data centers. It comes with a range of advanced features that enhance network reliability, including redundant fans and an AC power supply. The front-to-back airflow design helps maintain optimal operating temperatures, extending the switch’s lifespan and reducing maintenance costs.
Equipped with 48 10/100/1000BASE-T ports, 4 x 1/10GbE SFP/SFP+ ports, and 2 x 40GbE QSFP+ ports, the EX3400-48T allows for flexible uplink/downlink connectivity and is ideally suited for high-density environments. This wide array of ports also enables you to future-proof your network by accommodating increased bandwidth demands. As your enterprise grows, the switch’s Virtual Chassis technology can be used to manage multiple interconnected switches as a single device, simplifying network management and reducing operational complexity.
Juniper’s reputation for quality and innovation ensures you’re purchasing a product that embodies decades of networking expertise. Furthermore, buying from Nortland Systems means you’ll receive dedicated support and potential discounts, making the already cost-effective EX3400-48T an even more valuable investment. Whether it’s for current needs or future expansion, the EX3400-48T is a smart purchase for any organization looking to enhance its network infrastructure.
EX3400-48T is a Juniper EX3400 switch with 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+, redundant fans, front-to-back airflow, 1 AC PSU JPSU-150-AC-AFO included (optics sold separately). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Quick Spec
Table 1 shows the quick spec.
SKU |
EX3400-48T |
Ports |
48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
Backplane speed |
160 Gbps |
Data rate |
336 Gbps |
Throughput |
250 Mpps (wire speed) |
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
Product Details

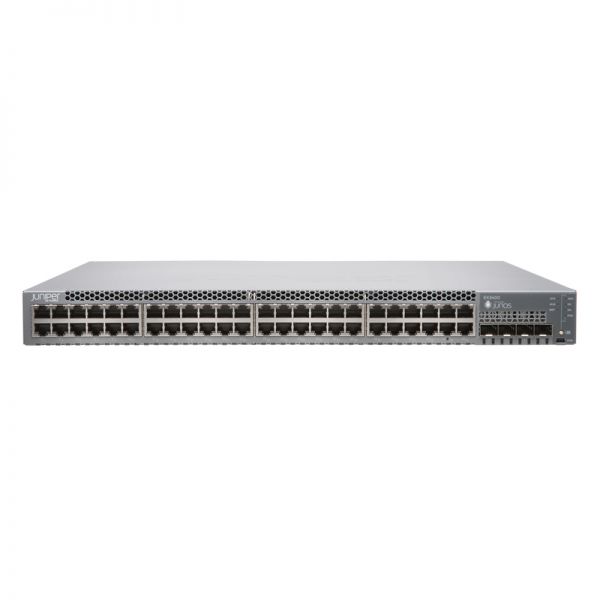

Figure 1 shows the front panel of EX3400-48T.
Note:
â‘ |
RJ-45 ports |
â‘£ |
Factory Reset/Mode button |
â‘¡ |
Uplink ports |
⑤ |
Port status mode LEDs |
â‘¢ |
Mini-USB console port |
â‘¥ |
Chassis status LEDs |
Figure 2 shows the rear panel of EX3400 AC chassis.
Note:
â‘ |
Management Ethernet port |
⑦ |
AC power supply |
â‘¡ |
Protective earthing terminal |
â‘§ |
Serial Number ID Label |
â‘¢ |
ESD point |
⑨ |
QSFP+ uplink ports |
â‘£ |
Fan modules |
â‘© |
RJ-45 console port |
⑤ |
CLEI code label |
⑪ |
USB port |
â‘¥ |
Empty slot for power supply covered by a blank panel |
|
|
Compare to Similar Items
Table 2 shows the comparison.
SKU |
EX3400-24T |
EX3400-24P |
EX3400-48T |
EX3400-48P |
Ports |
24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
Backplane speed |
160 Gbps |
160 Gbps |
160 Gbps |
160 Gbps |
Data rate |
288 Gbps |
288 Gbps |
336 Gbps |
336 Gbps |
Throughput |
214 Mpps (wire speed) |
214 Mpps (wire speed) |
250 Mpps (wire speed) |
250 Mpps (wire speed) |
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
