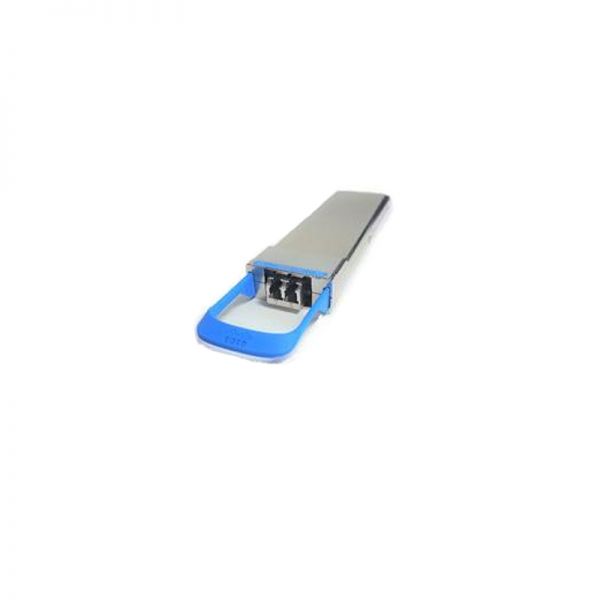

The Cisco CPAK-100G-SR4= module is an essential upgrade for expanding data center and enterprise network capabilities. With its 100-Gbps connectivity, it significantly increases network bandwidth to meet the demands of high-volume data and application usage. The module benefits from a reduced power consumption design that lowers operational costs while boosting energy efficiency compared to previous form factors. A compact footprint allows for greater port density, enabling businesses to utilize available space more effectively. Enhanced flexibility is another advantage, as this module can accommodate various distance requirements and supports multimode fiber implementations. Notably, the CPAK-100G-SR4= is interoperable with IEEE-compliant equipment and the Cisco quality identification feature ensures its compatibility and optimal functioning within Cisco platforms. It’s also designed to be hot-swappable, minimizing downtime and facilitating easy upgrades or replacements. Purchasing this module can protect existing investments, given its support for a pay-as-you-grow model, and offers an affordable migration path towards 100G speeds. The module supports Digital Optical Monitoring for performance management and is backed by Cisco’s reliability and excellence in technology, ensuring a trustworthy, long-term solution for network growth. Its support on high-end Cisco switches and routers like the ASR 9000 Series and Nexus 7000 Series ensures seamless integration into an existing Cisco infrastructure. Therefore, investing in the Cisco CPAK-100G-SR4= module is a strategic move for organizations seeking scalable, reliable, and cost-efficient network enhancements.
Cisco CPAK® 100GBASE fiber modules for Cisco® switches and routers offer a selection of high-density 100-Gbps connectivity solutions. The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
CPAK-100G-SR4= |
|
Description |
100GBASE-SR4 Cisco CPAK Module for MMF |
|
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Wavelength (nm) |
850 |
|
Cable Type |
MMF (12 fibers) |
|
Core Size (Microns) |
50.0 50.0 |
|
Modal Bandwidth (MHz*km) |
2000 (OM3) 4700 (OM4) |
|
Cable Distance |
70 m 100 m |
Product Details
Table 2 Cisco CPAK 100GBASE module features and benefits
|
Requirement |
Cisco CPAK Module Supporting Feature |
|
Accommodate ever-growing bandwidth requirements |
Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth |
|
Control costs |
Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors |
|
Real estate conservation |
Minimal footprint allows 20% greater port density and bandwidth than competing products |
|
High availability for business continuity |
Hot-swappable input/output device plugs into a Cisco CPAK-module-based switch, router, or optical platform port |
|
Accommodate a variety of distance and fiber type requirements |
Flexible interface choices |
|
Investment protection, affordable migration to higher bandwidth |
•Support for a “pay-as-you-grow” model •Can plug any Cisco 100-Gbps, 40-Gbps, and 10-Gbps line cards into Cisco CPAK modules (supports the Cisco AnyPort solution) |
|
Manage performance |
Digital Optical Monitoring (DOM) support |
|
Proper functioning and high performance with all Cisco platforms |
Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco |
|
Standards compliance for equipment flexibility and choice |
Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR |
Platform support
Cisco CPAK 100GBASE modules are supported on Cisco high-end switches, routers, and transport equipment:
● ASR 9000 Series Router
● CRS-X Carrier Routing System
● NCS 2000, 4000, and 6000 Series Routers
● Nexus 7000 and 7700 Series Switches
● Cisco ONS Transport PlatformCompare to Similar Items
Compare to Similar Items
Table 3 shows the comparison.
|
Parameters |
CPAK-100G-CWDM4= |
CPAK-100GE-LR4= |
CPAK-100G-ER4L= |
CPAK-100G-LR4= |
CPAK-100G-PSM4= |
CPAK-100G-SR4= |
CPAK-100G-SR10= |
|
Description |
100GBASE-CWDM4 Cisco CPAK Module for SMF |
100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors) |
100GBASE-ER4 Lite Cisco CPAK Module for SMF |
100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors) |
100GBASE PSM4 Cisco CPAK Module for SMF |
100GBASE-SR4 Cisco CPAK Module for MMF |
100GBASE-SR10 Cisco CPAK Module for MMF |
|
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
|
Wavelength (nm) |
1271, 1291, 1311, 1331 |
1310 |
1310 |
1310 |
1295 to 1325 |
850 |
850 |
|
Cable Type |
SMF Duplex |
SMF Duplex |
SMF Duplex |
SMF Duplex |
SMF (12 fibers) |
MMF (12 fibers) |
MMF (12 fibers) |
|
Core Size (Microns) |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
50.0 50.0 |
50.0 50.0 |
|
Modal Bandwidth (MHz*km) |
|
|
|
|
|
2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
|
Cable Distance |
2 km |
10 km |
25 km |
10 km |
500 m |
70 m 100 m |
100 m 150 m |
|
Supported Mode |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G 2x40G 10x10G |
|
Supported Protocol |
IEEE 802.3ba |
IEEE 802.3ba |
IEEE 802.3ba ITU OTU4 |
IEEE 802.3ba ITU OTU4 |
IEEE 802.3ba |
IEEE 802.3ba |
1x100G: IEEE 802.3ba ITU OTU4 2x40G: IEEE 802.3ba ITU OTU3 10x10G: IEEE 802.3ae FC ITU OTU2 ITU OTU1e ITU OTU2e |
Get More Information
Do you have any question about the CPAK-100G-SR4=?
Contact us now via Contact Form or sales@northlandusa.com.
Affordable Quality with CPAK-100G-SR4= Cisco 100 Gigabit Optical Modules
Northland Systems ensures an exceptional balance between cost efficiency and product excellence. Every CPAK-100G-SR4= Cisco 100 Gigabit Optical Module is available at wholesale prices while adhering to the 100% Low Price Guarantee. These modules retain the high standards expected from Cisco, providing both affordability and dependable quality.
Complimentary CCIE Expert Support
Investing in Northland Systems’ optical modules comes with the bonus of free expert CCIE technical support. This tailored guidance is readily accessible across numerous channels without incurring additional costs. This service significantly enhances the value provided to customers by offering professional support alongside their purchase.
Secure and Flexible Buying Experience
Customer transactions are fortified with robust security and tailored flexibility. Northland Systems commits to safety with certifications from McAfee Secure and VeriSign Secured, ensuring a trustworthy online environment. Additionally, clients benefit from a variety of secure payment methods and flexible shipping options, optimizing convenience.
Guaranteed Authenticity and Quality Condition
All Cisco 100G Optical Modules from Northland Systems are guaranteed to be genuine and are presented in either brand new sealed condition or as fully tested and reliable used/refurbished units. Cisco-certified engineers ensure the integrity and reliability of every component.
Customer Confidence Through Money-Back Guarantee
The trust in Northland Systems’ offerings is solidified with a 100% Money Back Guarantee, ensuring customers feel confident and secure in their investments.
Discounts and Established Reputation
With its inception in 1997, Northland Systems boasts a proven track record in the industry. This experience comes with the added benefit of significant discounts, providing customers with cost-effective solutions and the assurance of a seasoned provider.
Benefits of Choosing Pre-owned Cisco 100G Optical Modules
Opting for pre-owned hardware encompasses numerous advantages which extend beyond just cost savings—prompt shipment, full warranty service, and an eco-friendly approach to IT are foundational elements of purchasing from Northland Systems. Moreover, legacy components give a lifeline to systems requiring long-term operational stability.
