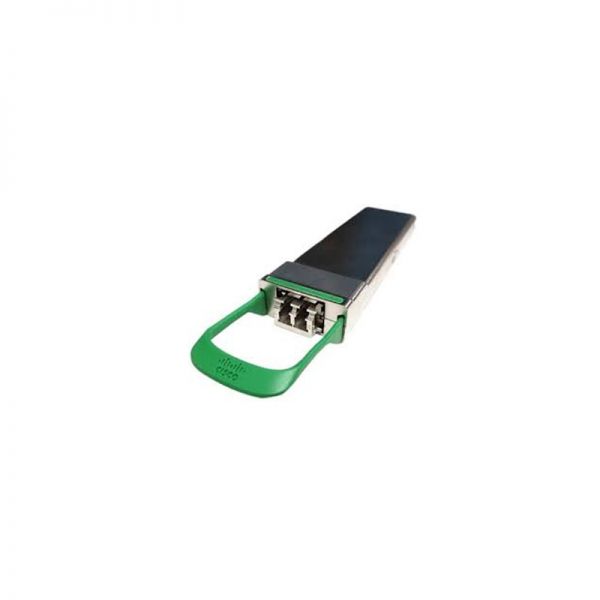

Investing in the Cisco CPAK-100G-CWDM4= module ensures high-performance, cost-effective network connectivity suitable for a wide range of applications across enterprise and service provider data centers. The use of coarse wavelength-division multiplexing (CWDM) enables the cost-efficient transmission of data, catering to the demands for increased bandwidth without significant infrastructure changes.
The Cisco CPAK-100G-CWDM4= is designed for sustainability with up to 70% lower power consumption compared to previous form factors, which means significant long-term cost savings, and supports a greener IT environment. Its compact design allows for 20% greater port density, maximizing space efficiency in data centers.
Compatibility with a broad suite of Cisco devices, including ASR 9000 Series, CRS-X, Nexus 7000, and 7700, ensures seamless integration into existing networks and protects prior investments. The module supports a range of distances and is hot-swappable, minimizing downtime with simple plug-and-play replacement.
The module’s support for digital optical monitoring (DOM) provides critical performance metrics in real-time, crucial for maintaining optimal operation and troubleshooting. Plus, quality identification features automatically ensure the module is compatible and performing to Cisco’s stringent standards.
Selecting the CPAK-100G-CWDM4= also underpins a scalable network infrastructure. Its compatibility with a broad spectrum of fiber types and the ability to accommodate bandwidth increases allows network managers to cost-effectively upgrade and expand their systems in response to growing data volume, ensuring a future-proofed networking solution.
Cisco CPAK® 100GBASE fiber modules for Cisco® switches and routers offer a selection of high-density 100-Gbps connectivity solutions. The modules are especially well suited for connections in enterprise and service provider data centers and in service provider edge networks.
Quick Specs
Table 1 shows the Quick Specs.
Product Code |
CPAK-100G-CWDM4= |
Description |
100GBASE-CWDM4 Cisco CPAK Module for SMF |
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
Wavelength (nm) |
1271, 1291, 1311, 1331 |
Cable Type |
SMF Duplex |
Core Size (Microns) |
9-micron core SMF per G.652 |
Modal Bandwidth (MHz*km) |
|
Cable Distance |
2 km |
Product Details
Table 2 Cisco CPAK 100GBASE module features and benefits
Requirement |
Cisco CPAK Module Supporting Feature |
Accommodate ever-growing bandwidth requirements |
Up to 10 100-Gigabit Ethernet connections deliver as much as 1 Tbps of front-panel bandwidth |
Control costs |
Form factor consumes 40% less power than CFP2 and 70% less power than CFP form factors |
Real estate conservation |
Minimal footprint allows 20% greater port density and bandwidth than competing products |
High availability for business continuity |
Hot-swappable input/output device plugs into a Cisco CPAK-module-based switch, router, or optical platform port |
Accommodate a variety of distance and fiber type requirements |
Flexible interface choices |
Investment protection, affordable migration to higher bandwidth |
•Support for a “pay-as-you-grow” model •Can plug any Cisco 100-Gbps, 40-Gbps, and 10-Gbps line cards into Cisco CPAK modules (supports the Cisco AnyPort solution) |
Manage performance |
Digital Optical Monitoring (DOM) support |
Proper functioning and high performance with all Cisco platforms |
Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco |
Standards compliance for equipment flexibility and choice |
Interoperability with any IEEE-compliant: 100GBASE-SR4, 100GBASE-LR4, 100GBASE-SR10, 40GBASE-SR4, 10GBASE-SR, 10GBASE-LR |
Platform support
Cisco CPAK 100GBASE modules are supported on Cisco high-end switches, routers, and transport equipment:
● ASR 9000 Series Router
● CRS-X Carrier Routing System
● NCS 2000, 4000, and 6000 Series Routers
● Nexus 7000 and 7700 Series Switches
● Cisco ONS Transport PlatformCompare to Similar Items
Compare to Similar Items
Table 3 shows the comparison.
Parameters |
CPAK-100G-CWDM4= |
CPAK-100GE-LR4= |
CPAK-100G-ER4L= |
CPAK-100G-LR4= |
CPAK-100G-PSM4= |
CPAK-100G-SR4= |
CPAK-100G-SR10= |
Description |
100GBASE-CWDM4 Cisco CPAK Module for SMF |
100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors) |
100GBASE-ER4 Lite Cisco CPAK Module for SMF |
100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors) |
100GBASE PSM4 Cisco CPAK Module for SMF |
100GBASE-SR4 Cisco CPAK Module for MMF |
100GBASE-SR10 Cisco CPAK Module for MMF |
Dimensions |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in) |
Wavelength (nm) |
1271, 1291, 1311, 1331 |
1310 |
1310 |
1310 |
1295 to 1325 |
850 |
850 |
Cable Type |
SMF Duplex |
SMF Duplex |
SMF Duplex |
SMF Duplex |
SMF (12 fibers) |
MMF (12 fibers) |
MMF (12 fibers) |
Core Size (Microns) |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
9-micron core SMF per G.652 |
50.0 50.0 |
50.0 50.0 |
Modal Bandwidth (MHz*km) |
|
|
|
|
|
2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
Cable Distance |
2 km |
10 km |
25 km |
10 km |
500 m |
70 m 100 m |
100 m 150 m |
Supported Mode |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G |
1x100G 2x40G 10x10G |
Supported Protocol |
IEEE 802.3ba |
IEEE 802.3ba |
IEEE 802.3ba ITU OTU4 |
IEEE 802.3ba ITU OTU4 |
IEEE 802.3ba |
IEEE 802.3ba |
1x100G: IEEE 802.3ba ITU OTU4 2x40G: IEEE 802.3ba ITU OTU3 10x10G: IEEE 802.3ae FC ITU OTU2 ITU OTU1e ITU OTU2e |
