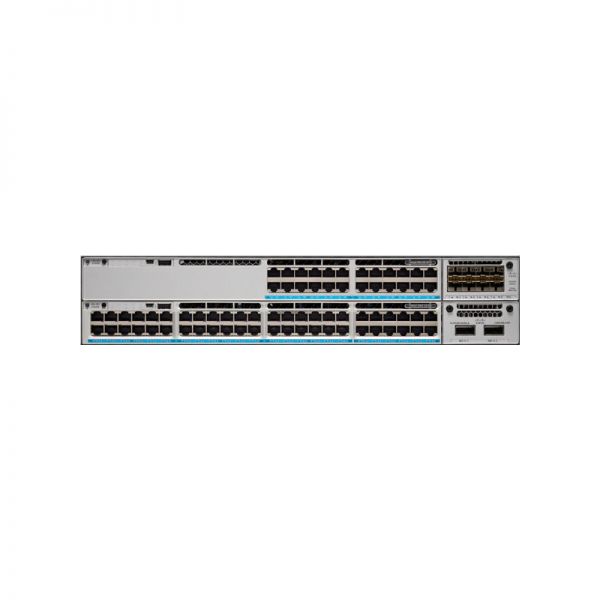

Investing in the Cisco Catalyst C9300L-24UXG4X-10A switch means equipping your infrastructure for the growing demands of modern networks. This switch provides a high-density PoE+ option with 24 ports, enhanced by 8 multigigabit connections, ideal for supporting advanced wireless standards such as Wi-Fi 6. Its 4x 10G uplink capacity ensures a fast data transfer rate, vital for cloud services and large data uploads. The built-in x86 CPU architecture and extra memory make the switch capable of hosting containers and running third-party applications, preparing your network for future technological advancements. With Cisco’s StackWise technology, you can ensure minimal downtime and maximize resiliency through NSF/SSO, ensuring continuous operations even when a unit fails. Cisco StackPower further improves power management and efficiency across your switch stack, reducing total cost of ownership. Moreover, the switch’s robust power supply of 1100W AC can support demanding devices while offering a generous PoE budget of 880W. Security features inherent to Cisco’s ecosystem, like advanced encryption and threat defense, safeguard your network perimeter. By choosing the C9300L-24UXG4X-10A, you invest in a scalable solution that adapts to evolving business needs while providing reliable and secure connectivity.
The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
C9300L-24UXG4X-10A |
|
Product Description |
C9300L 24p PoE+ 8xmGig, Netw Adv,4x10G Uplink |
|
Total 10/100/1000,Multigigabit copper or SFP Fiber |
24 PoE+ 8xmGig |
|
Uplink Configuration |
4x 10G fixed uplinks |
|
Default AC power supply |
1100W AC |
|
Available PoE power |
880W |
|
Switching capacity |
272 Gbps |
|
Switching capacity with stacking |
592 Gbps |
|
Forwarding rate |
202.38 Mpps |
|
Forwarding rate with stacking |
440.47 Mpps |
The Accessories
Table 2 shows the recommended elements for the Catalyst 9300 Series.
|
Product number |
Description |
|
Network module |
|
|
C9300-NM-4G |
Catalyst 9300 Series 4x 1G Network Module |
|
C9300-NM-4M |
Catalyst 9300 Series 4x Multigigabit Network Module |
|
C9300-NM-8X |
Catalyst 9300 Series 8x 10G Network Module |
|
C9300-NM-2Q |
Catalyst 9300 Series 2x 40G Network Module |
|
C9300-NM-2Y |
Catalyst 9300 Series 2x 25G Network Module |
|
Stacking accessories |
|
|
STACK-T1-50CM |
Data stack 50 cm (cable option with C9300 SKUs) |
|
STACK-T1-1M |
Data stack 1m (cable option with C9300 SKUs) |
|
STACK-T1-3M |
Data stack 3m (cable option with C9300 SKUs) |
|
C9300L-STACK-KIT |
Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable |
|
STACK-T3-50CM |
Data stack 50cm cable (default cable with C9300L Stack Kit) |
|
STACK-T3-1M |
Data stack 1m cable (cable option with C9300L Stack Kit) |
|
STACK-T3-3M |
Data stack 3m cable (cable option with C9300L Stack Kit) |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Code |
C9300L-24UXG-2Q-A |
C9300L-24UXG-4X-A |
C9300L-24UXG4X-10A |
|
Product Description |
Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 2x40G uplinks, Network Advantage |
Catalyst 9300 24-port fixed uplinks UPoE, 8xmGig, 4X10G uplinks, Network Advantage |
C9300L 24p PoE+ 8xmGig, Netw Adv,4x10G Uplink |
|
Total 10/100/1000,Multigigabit copper or SFP Fiber |
24 UPoE 8xmGig |
24 UPoE 8xmGig |
24 PoE+ 8xmGig |
|
Uplink Configuration |
2x 40G fixed uplinks |
4x 10G fixed uplinks |
4x 10G fixed uplinks |
|
Default AC power supply |
1100W AC |
1100W AC |
1100W AC |
|
Available PoE power |
722W |
880W |
880W |
|
Switching capacity |
352 Gbps |
272 Gbps |
272 Gbps |
|
Switching capacity with stacking |
672 Gbps |
592 Gbps |
592 Gbps |
|
Forwarding rate |
261.90 Mpps |
202.38 Mpps |
202.38 Mpps |
|
Forwarding rate with stacking |
500.00 Mpps |
440.47 Mpps |
440.47 Mpps |
Get More Information
Do you have any question about the C9300L-24UXG4X-10A ?
Contact us now via Contact Form or sales@northlandusa.com.
High-Quality and Affordable Cisco Catalyst 9300 Switches
The C9300L-24UXG4X-10A is an ideal choice from the Cisco Catalyst 9300 series, and Northland Systems offers a unique value proposition. Customers benefit from high-quality Cisco switches at wholesale prices, ensuring you get top-tier technology without breaking the bank.
Comprehensive Expert Support at No Extra Charge
Purchasing the C9300L-24UXG4X-10A from Northland Systems comes with the added advantage of complimentary expert CCIE technical support. This free guidance underscores Northland’s commitment to enhancing the customer experience and ensuring success.
Secure and Convenient Shopping Experience
Northland Systems prioritizes customer peace of mind with secure transactions through methods verified by certifications such as McAfee Secure and VeriSign Secured. Flexible shipment options are available to suit various needs, offering ease and security in your purchasing process.
Guaranteed Authenticity and Quality
Northland Systems ensures that all products, including the C9300L-24UXG4X-10A switch, are authentic and available in new sealed or professionally refurbished conditions. Each unit is rigorously tested by certified Cisco engineers, guaranteeing reliability.
Boosted Customer Trust with Money-Back Assurance
A 100% Money Back Guarantee backs every purchase, emphasizing the confidence you can have in Northland Systems’ offerings. Customer satisfaction is a priority, reflected in our comprehensive guarantees.
Reputation and Economic Efficiency
Northland Systems has established trust and efficiency in the industry since 1997. Substantial discounts on products like the Cisco Catalyst 9300 series demonstrate a balance of cost-effectiveness with reliable service.
Choosing Pre-owned Hardware for Maximum Benefit
Opting for pre-owned Cisco switches from Northland Systems includes multiple advantages. These range from significant cost savings to rapid delivery, robust warranty protection, reduced environmental impact, and availability of legacy equipment to ensure long-term system stability.
Whether your network demands are extensive or you’re upgrading, the C9300L-24UXG4X-10A from the Cisco Catalyst 9300 series available at Northland Systems satisfies your needs while offering a seamless purchasing experience.
