The Cisco Aironet 1810 OfficeExtend Access Point (AIR-OEAP1810-Z-K9) represents a strategic investment for any organization adapting to a growing remote workforce. By choosing this enterprise-grade access point, you ensure that teleworkers have the same secure, reliable wireless access as they would within the office, extending corporate-grade connectivity to any remote site. With advanced security features, including an encrypted tunnel to the corporate network, remote employees are assured a protected connection for handling sensitive data.
Moreover, businesses that deploy the Aironet 1810 can expect reduced costs and complexities associated with remote access solutions by leveraging the existing enterprise infrastructure. Consequently, the user experiences little to no difference in terms of network performance when working remotely, which is vital for maintaining business continuity and high productivity levels.
On the technical side, the device is packed with features to support a contemporary mobile workforce. Highlighted by 2×2 MIMO technology, it comes with dual spatial streams and supports various channel widths, enabling it to reach speeds of up to 866.7 Mbps. This capacity is invaluable when dealing with high-bandwidth applications such as video conferencing, cloud applications, and large file transfers.
Additionally, with support for Power over Ethernet (PoE), the Aironet 1810 can be easily installed in a variety of settings without the need for additional electrical wiring, making it a flexible solution that aligns with the cost and operational efficiencies demanded by today’s businesses. The access point also features quality of service (QoS) capabilities, ensuring that critical business applications are given priority on the network.
Adopting the Cisco Aironet 1810 means future-proofing your workplace with an access point designed to support the next generation of mobile devices and applications, making it a wise choice for businesses looking to empower their workforce with the full potential of secure mobility.
AIR-OEAP1810-Z-K9, providing T Regulatory Domain, is one of the Cisco Aironet 1810 Series OfficeExtend Access Points. The 1810 Series offer a highly secure enterprise wireless and wired connection to the home, micro-branch, or other types of remote sites. The 1810 Series extends the corporate network to teleworkers, mobile workers and even micro-sites. The access points connect to the home or site broadband Internet access and establish a highly secure tunnel to the corporate network. This tunnel allows remote employees access to data, voice, video and cloud services for a mobility experience consistent with that at the corporate office. The 1810 Series supports highly secure access to corporate data and personal connectivity for teleworkers’ home devices, with segmented home traffic.
Quick Specs
Table 1 shows the quick specs of AIR-OEAP1810-Z-K9.
|
Product Code |
AIR-OEAP1810-Z-K9 |
|
Interfaces |
– 1 × 10/100/1000BASE-T PoE uplink port – 1 × Management console port (RJ-45) – 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port – 1 × DC power connector |
|
Features |
2×2 single-user/multiuser MIMO with two spatial streams Maximal ratio combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support |
|
Regulatory Domain |
Z (Z regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) – 5.745 to 5.825 GHz; 5 channels |
|
Integrated antennas |
– 2.4 GHz, gain 2 dBi – 5 GHz, gain 5 dBi |
|
System |
– 512 MB DRAM – 256 MB flash – 1.4 GHz system dual-core CPU |
|
Dimensions (W x L x H) |
165 x 114 x 41 mm (Access point without mounting bracket)) |
|
Weight |
560g (Access point without mounting bracket or any other accessories) |
Product Details
Figure 1 shows the face and left side of AP.
Note:
|
â‘ |
The Face of AP |
â‘¢ |
48V DC power port |
|
â‘¡ |
The Left side of AP |
â‘£ |
Kensington lock slot |
Figure 2 shows the base of the AP with the ports and connectors.
Note:
|
â‘ |
Console port |
â‘£ |
LAN port 2 |
|
â‘¡ |
Passive Pass-Through port |
⑤ |
PSE / LAN port 1 |
|
â‘¢ |
LAN port 3 |
· PSE / LAN port 1 provides 802.3af/at Power Sourcing Equipment (PSE) PoE-Out power on the LAN 1 Ethernet interface. With 802.3at input the PoE-Out is 6.95W (Class 2).With DC input the PoE-Out is 12.95W (Class 0).

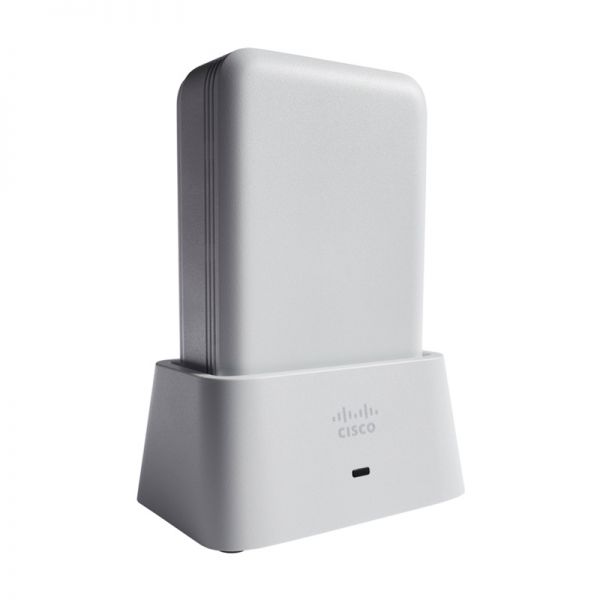

Figure 3. Mounting the AP in the Cradle.
Note:
|
â‘ |
The AP |
|
â‘¡ |
The cradle kit |
|
â‘¢ |
Mounting the AP in the Cradle |
· Cisco Aironet OEAP1810 series access points can be mounted on a table or horizontal surface, using the AIR-OEAP1810-CRD= cradle kit. This kit is shipped with the access point as standard and includes a back cover and an RJ-45 jumper cable. It is also separately available from Cisco as a spare.
Figure 4 shows the AIR-OEAP1810-CRD= Cradle Views.
Note:
|
â‘ |
AP Status LED indication when AP is mounted in the cradle |
â‘£ |
LAN 3 port |
|
â‘¡ |
PSE / LAN 1 port |
⑤ |
WAN port |
|
â‘¢ |
LAN 2 port |
Compare to Similar Items
Table 2 shows the comparison between two AP.
|
Models |
AIR-OEAP1810-Z-K9 |
AIR-OEAP1810-A-K9 |
|
Interfaces |
– 1 × 10/100/1000BASE-T PoE uplink port – 1 × Management console port (RJ-45) – 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port – 1 × DC power connector |
– 1 × 10/100/1000BASE-T PoE uplink port – 1 × Management console port (RJ-45) – 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port – 1 × DC power connector |
|
Regulatory Domain |
Z (Z regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) – 5.745 to 5.825 GHz; 5 channels |
A (A regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) – 5.745 to 5.825 GHz; 5 channels |
Get more information
Do you have any question about the AIR-OEAP1810-Z-K9?
Contact us now via Contact Form or sales@northlandusa.com.
AIR-OEAP1810-Z-K9 – Cisco Aironet 1810 OfficeExtend Access Point
Unmatched Affordability and Quality
Investing in the Cisco Aironet 1810 OfficeExtend Access Point at Northland Systems means accessing premium equipment at wholesale pricing. Our 100% Low Price Guarantee underlines our commitment to affordability without sacrificing quality. This access point offers a robust and reliable wireless connection that caters to both business and remote work environments.
Complimentary Expert Support
Northland Systems differentiates itself through no-cost expert CCIE technical support for your Cisco 1810 Access Point. We bridge the knowledge gap and help clients navigate complex network situations effortlessly—a complimentary service that enhances the value proposition beyond the initial purchase.
Secure and Flexible Purchasing Experience
Confidence in transaction security is paramount. We offer multiple avenues for secure payment and flexible shipment options. Our adherence to standards set by McAfee Secure and VeriSign Secured certifications means peace of mind for every transaction.
Guaranteed Authenticity and Optimal Condition
Our portfolio promises genuine Cisco equipment. Each AIR-OEAP1810-Z-K9 undergoes rigorous testing by Cisco-certified engineers, ensuring you receive the device in its optimal “New Sealed” or “Used / Refurbished” condition. This meticulous process guarantees impeccable functionality.
Bolstering Customer Confidence
We back our products with a 100% Money Back Guarantee, ensuring client satisfaction as a cornerstone of our service. Your purchase, accompanied by our guarantee, speaks volumes about the reliability you can expect from Northland Systems.
Established Trust and Discounted Rates
Since 1997, our enduring presence in the industry has been synonymous with reliability. Substantial discounts complement our reputation, championing Northland Systems as the source for cost-effective technology solutions, including Wireless > Cisco Wireless APs & Controllers.
Benefits of Pre-owned Hardware
Opting for pre-owned hardware like the Cisco 1810 Access Point brings several advantages:
- Significant cost savings
- Expedited delivery options
- Complete warranty coverage
- Environmental benefits from reduced e-waste
- Availability of legacy parts for extended service life
In conclusion, Northland Systems provides not only a financially smart choice but also promotes sustainability and resourcefulness in the tech industry.
