The Cisco Aironet 1852i provides a significant upgrade to wireless networking for small to medium-sized businesses. As a Wave 2 802.11ac access point, it excels in delivering high-speed connectivity, which is crucial as more devices connect to the internet and the demand for bandwidth-intensive applications increases.
Choosing the AIR-AP1852I-C-K9C model benefits your network with 4×4 MIMO technology, allowing four concurrent data streams and maximizing signal intensity, which in turn translates to faster data transfers and improved performance. Moreover, multiuser MIMO capability ensures multiple clients can interact with the AP simultaneously, enhancing efficiency and user experience.
Security shouldn’t be a concern either since Cisco’s renowned enterprise-grade security features are baked into the Mobility Express software. This ensures that both the network and its connected clients are safeguarded against potential threats.
Furthermore, this access point is equipped with internal antennas, making the device more compact and ideal for indoor use while also simplifying deployment. With support for PoE, installation becomes flexible and reduces the need for additional cabling.
Scalability is another reason to invest in the Cisco Aironet 1852i. As your business grows, the AP can adapt to increasing demands without compromising performance. The AIR-AP1852I-C-K9C also supports advanced features like beamforming, which further enhances its capability to provide reliable and consistent wireless connections.
Choosing the AIR-AP1852I-C-K9C provides not only robust and high-speed wireless connectivity but also the reliability and technical support expected from a leader like Cisco. It’s an investment that supports evolving business needs while simplifying management and deployment—crucial factors for any dynamically growing enterprise.

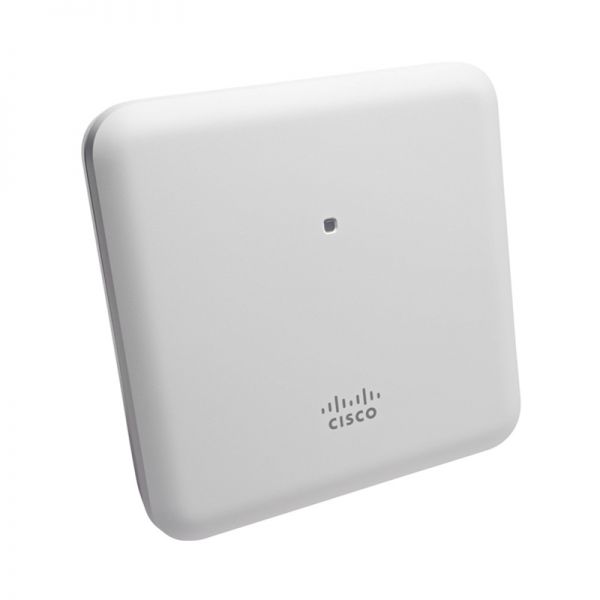

AIR-AP1852I-C-K9C is one of the Cisco Aironet 1850 Series Access Points. Cisco 1850 AP series is ideal for small and medium-sized networks. This series supports enterprise-class 4×4 MIMO, four-spatial-stream access points that support the IEEE’s new 802.11ac Wave 2 specification. The 1850 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 2 support. The model AIR-AP1852I-C-K9C provides C Regulatory Domain and internal antennas. Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Quick Specs
Table 1 shows the quick specs of AIR-AP1852I-C-K9C.
|
Part Number |
AIR-AP1852I-C-K9C |
|
Description |
802.11ac Wave 2 Access Point, 4×4:4, Internal-Ant, C Regulatory Domain ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image. |
|
Features |
– 4×4 MIMO with four spatial streams, single-user MIMO – 4×4 MIMO with three spatial streams, multiuser MIMO – MRC – 802.11ac beamforming (transmit beamforming) – 20-, 40-, and 80-MHz channels – PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support |
|
Regulatory Domain |
C (C regulatory domain): – 2.412 to 2.472 GHz; 3 channels – 5.745 to 5.825 GHz; 5 channels |
|
Antenna |
Internal Antenna |
|
Interfaces |
– 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) – 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) – Management console port (RJ-45) – USB 2.0 (enabled via future software) |
|
Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
Product Details
Figure 1 shows the AIR-AP1852I LED Indicator Position.
Note: â‘ LED indicator position
Table 2 shows the AP LED indicators’ descriptions.
|
Message Type |
LED State |
Message Meaning |
|
Association status |
Chirping Green |
Normal operating condition, but no wireless client associated |
|
Green |
Normal operating condition, at least one wireless client association |
|
|
Boot loader status |
Green |
Executing boot loader |
|
Boot loader error |
Red |
Boot loader signing verification failure |
|
Access point regulatory domain priming status |
Blinking Amber |
AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress |
|
Cycling Red, Green and off |
AP waiting to be primed |
|
|
Chirping Red |
AP primed to a wrong regulatory domain |
|
|
Operating status |
Blinking amber |
Software upgrade in progress |
|
Cycling through green, red, and amber |
Discovery/join process in progress |
|
|
Rapidly cycling through red, green, amber, and off. |
Access point location command invoked from controller web interface. |
|
|
Access point operating system errors |
Cycling through red, green, amber, and off |
General warning; insufficient inline power |
Figure 2 shows AIR-AP1852I Ports and Connections.
Note:
|
â‘ |
Mode button |
â‘£ |
AUX (Auxiliary) port. |
|
â‘¡ |
RJ-45 console port |
⑤ |
PoE-In port (Ethernet Uplink port) |
|
â‘¢ |
USB 2.0 port |
â‘¥ |
48 V DC input power port |
AUX (Auxiliary) port appears in the wireless controller user interface as GigabitEthernet1. This port, along with the PoE-In port, is used for Link Aggregation. This port is disabled when using 802.3af (15.4W) power.
Compare to Similar Items
Table 3 shows the comparison between two AP.
|
Part Number |
AIR-AP1852I-C-K9 |
AIR-AP1852I-C-K9C |
|
Description |
802.11ac Wave 2 Access Point, 4×4:4 |
802.11ac Wave 2 Access Point, 4×4:4 ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image. |
|
Antenna |
Internal Antennas |
Internal Antennas |
|
Regulatory Domain |
C (C regulatory domain): – 2.412 to 2.472 GHz; 3 channels – 5.745 to 5.825 GHz; 5 channels |
C (C regulatory domain): – 2.412 to 2.472 GHz; 3 channels – 5.745 to 5.825 GHz; 5 channels |
Support & Resources
[PDF] Cisco Indoor Access Points Comparison Chart
Get more information
Do you have any question about the AIR-AP1852I-C-K9C?
Contact us now via Contact Form or sales@northlandusa.com.
AIR-AP1852I-C-K9C – Cisco Aironet 1852i Access Point
When sourcing a reliable and advanced Cisco Aironet 1852i Access Point, AIR-AP1852I-C-K9C becomes the top choice for businesses looking for performance-enhancing wireless infrastructure. Securing this device from Northland Systems, a trusted provider since 1997, ensures several inherent benefits underlining their commitment to quality and customer satisfaction.
Value Unmatched in Affordability and Quality
Northland Systems sets a high bar with an unparalleled blend of high-quality products such as the Cisco Aironet 1852i offered at wholesale prices. They back this exceptional value proposition with a 100% Low Price Guarantee, ensuring that customers never overpay for state-of-the-art technology.
Complimentary Expert Support
Customers gain more than just equipment; they receive a wealth of knowledge through free expert CCIE technical support. It’s like having a specialist on call, but without any additional fees – a level of service that can save time and money during setup and troubleshooting.
Transaction Security and Versatility
Feel secure in every transaction with Northland’s safe payment options and flexible shipping, all supported by the trust and assurance offered by certifications such as McAfee Secure and VeriSign Secured. The peace of mind provided is invaluable in today’s digital transaction landscapes.
Authenticity and Condition Guaranteed
Have confidence in the authenticity and condition of your Cisco Aironet 1852i. Northland Systems guarantees that all products, whether “New Sealed” or “Used / Refurbished,” are original, genuine, and thoroughly tested by certified Cisco engineers for dependable performance.
Customer Confidence at Its Core
The 100% Money Back Guarantee is a testament to Northland Systems’ assurance of quality and customer service. This warranty is a mark of trust, affirming the reliability of their products and your wise investment.
Established Reputation and Significant Discounts
Leveraging an industry presence that spans over decades, Northland Systems offers substantial discounts. Their long-standing record speaks volumes about their mission to deliver both reliability and cost-effectiveness, solidifying their role as a leading equipment provider.
The Smarter Choice: Pre-owned Hardware
Opting for pre-owned hardware like Wireless > Indoor Access Points from Northland Systems presents numerous advantages, including cost savings, swift delivery, full warranty coverage, and a reduced environmental footprint. Additionally, access to hard-to-find legacy parts ensures the stability and longevity of your network’s infrastructure.
In Conclusion
Choosing Northland Systems for the AIR-AP1852I-C-K9C – Cisco Aironet 1852i Access Point is a smart decision, not only for the cost-efficiency and the premium quality it offers but also for the comprehensive support and dependable expertise that come with it.
