Investing in the Cisco Aironet 1852E Access Point (AIR-AP1852E-B-K9C) ensures you harness the full potential of 802.11ac Wave 2 technology, capable of supporting high-density environments with multiple clients such as smartphones, tablets, and laptops. With its 4×4 MIMO four-spatial-stream configuration, this access point provides significant improvements in user experience by increasing throughput and reducing latency during peak usage times.
One of the key advantages of the AIR-AP1852E-B-K9C is its adaptability. The external antennas offer flexible mounting options, making it easy to optimize coverage patterns for maximum efficiency across varied deployment scenarios. Additionally, the access point supports both single-user and multiuser MIMO, making it capable of communicating with multiple devices concurrently, vastly improving network efficiency and user bandwidth.
Ease of setup is another benefit, as it comes preconfigured with the Cisco Mobility Express solution, allowing for simple and fast configuration without the need for a physical controller. Network administrators can easily manage the system, reducing setup time and costs.
Furthermore, the AIR-AP1852E-B-K9C model operates within the B Regulatory Domain, providing compliance with regional regulations for wireless communication. Employing this access point means you can confidently expand your network’s wireless capacity with a product designed for optimal performance and regulatory adherence.
Choosing Cisco’s Aironet 1852E also sets a solid foundation for future-proofing your network infrastructure. As connected devices continue to evolve, having an access point capable of handling the demands of next-generation wireless standards is a savvy investment, ensuring your network remains capable and performant as new technologies emerge.
AIR-AP1852E-B-K9C is one of the Cisco Aironet 1850 Series Access Points. Cisco 1850 AP series is ideal for small and medium-sized networks. This series supports enterprise-class 4×4 MIMO, four-spatial-stream access points that support the IEEE’s new 802.11ac Wave 2 specification. The 1850 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 2 support. The model AIR-AP1852E-B-K9C provides B Regulatory Domain and External antennas. Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image.
Quick Specs
Table 1 shows the quick specs of AIR-AP1852E-B-K9C.
|
Part Number |
AIR-AP1852E-B-K9C |
|
Description |
802.11ac Wave 2 Access Point, 4×4:4, External-Ant, B Regulatory Domain |
|
Features |
– 4×4 MIMO with four spatial streams, single-user MIMO – 4×4 MIMO with three spatial streams, multiuser MIMO – MRC – 802.11ac beamforming (transmit beamforming) – 20-, 40-, and 80-MHz channels – PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support |
|
Regulatory Domain |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
|
Antenna |
External Antenna |
|
Interfaces |
– 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) – 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) – Management console port (RJ-45) – USB 2.0 (enabled via future software) |
|
Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
Product Details
Figure 1 shows the AIR-AP1852E LED Indicator Position.
Note:
|
① |
LED indicator position |
|
② |
External Antenna |

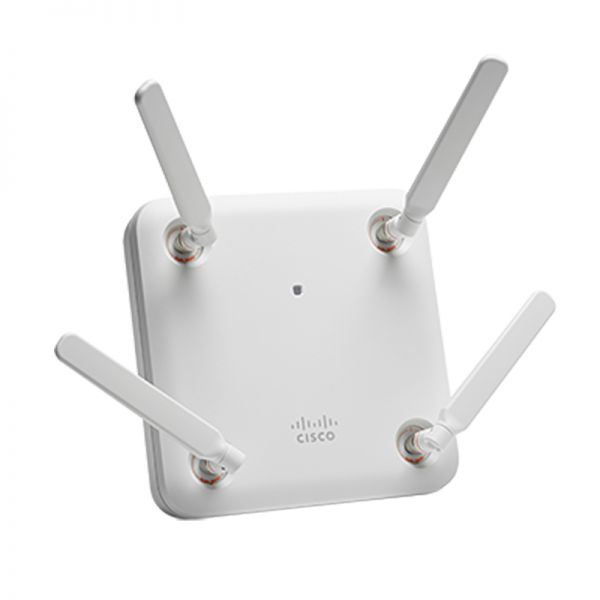

There are four external antennas installed with the AP.
Table 2 shows the AP LED indicators’ descriptions.
|
Message Type |
LED State |
Message Meaning |
|
Association status |
Chirping Green |
Normal operating condition, but no wireless client associated |
|
Green |
Normal operating condition, at least one wireless client association |
|
|
Boot loader status |
Green |
Executing boot loader |
|
Boot loader error |
Red |
Boot loader signing verification failure |
|
Access point regulatory domain priming status |
Blinking Amber |
AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress |
|
Cycling Red, Green and off |
AP waiting to be primed |
|
|
Chirping Red |
AP primed to a wrong regulatory domain |
|
|
Operating status |
Blinking amber |
Software upgrade in progress |
|
Cycling through green, red, and amber |
Discovery/join process in progress |
|
|
Rapidly cycling through red, green, amber, and off. |
Access point location command invoked from controller web interface. |
|
|
Access point operating system errors |
Cycling through red, green, amber, and off |
General warning; insufficient inline power |
Figure 2 shows AIR-AP1852E Ports and Connections.
Note:
|
① |
Mode button |
④ |
AUX (Auxiliary) port. |
|
② |
RJ-45 console port |
⑤ |
PoE-In port (Ethernet Uplink port) |
|
③ |
USB 2.0 port |
⑥ |
48 V DC input power port |
AUX (Auxiliary) port appears in the wireless controller user interface as GigabitEthernet1. This port, along with the PoE-In port, is used for Link Aggregation. This port is disabled when using 802.3af (15.4W) power.
Compare to Similar Items
Table 3 shows the comparison between two AP.
|
Part Number |
AIR-AP1852E-B-K9 |
AIR-AP1852E-B-K9C |
|
Description |
802.11ac Wave 2 Access Point, 4×4:4 |
802.11ac Wave 2 Access Point, 4×4:4 ★ Model number ending in C is, by default, factory-shipped with a Cisco Mobility Express software image. |
|
External Antenna |
Yes |
Yes |
|
Regulatory Domain |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
