The Cisco Aironet 1810W Access Point (AIR-AP1810W-Z-K9) is an essential investment for businesses seeking to establish or upgrade their wireless network infrastructure. This cutting-edge device provides not just simple installation, but also mounts inconspicuously onto wall plates, integrating seamlessly into any professional environment or multi-tenant building.
With 802.11ac Wave 2 capability, you’ll experience faster data rates and improved efficiency compared to older Wi-Fi standards. The Aironet 1810W is built for high-density environments, ensuring that users receive robust connectivity even in areas with a high volume of wireless clients, thanks to its advanced MIMO technology and two spatial streams.
Incorporating three local Ethernet ports, the access point extends the convenience and the capability of connecting multiple wired devices directly, optimizing space and reducing clutter. Among them is a PoE out port, allowing for power to be delivered to an external device, which adds to the versatility of the unit.
Network administrators will appreciate the simplified management processes, which include automated software updates and centralized control through the Cisco Digital Network Architecture (Cisco DNA). Moreover, the Z Regulatory Domain ensures that the device complies with specific radio frequencies and standards of various geographies, making it a reliable choice for international operations.
The durability of Cisco products is notable, and the Aironet 1810W is no exception. Its robust build quality indicates that once installed, it will continue to provide reliable service with minimal maintenance. Its dual-core CPU and ample memory allow for efficient processing and the ability to handle complex tasks, keeping up with the ever-increasing demands of modern wireless networks.
Investing in the Cisco Aironet 1810W Access Point means investing in a scalable, secure, and high-performing wireless network that adapts to the growing needs of your users and business. This financial consideration is offset by the increased productivity and user satisfaction that a reliable and fast wireless network provides, making it a clear choice for discerning businesses.
AIR-AP1810W-Z-K9, providing Z Regulatory Domain, is one of the Cisco Aironet 1810W (Wall Plate) Series Access Points. Cisco Aironet 1810W Series Access Points offer a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls or other multi-dwelling-unit deployments. The Aironet 1810W Series combines Gigabit Ethernet wired and 802.11ac Wave 2 wireless connectivity into a sleek device, built to take advantage of existing cabling infrastructure. This combination reduces total cost of ownership with no compromise to the end user.
Quick Specs
Table 1 shows the quick specs of AIR-AP1810W-Z-K9.
|
Product Code |
AIR-AP1810W-Z-K9 |
|
Interfaces |
– 1 × 10/100/1000BASE-T PoE uplink port – 1 × Management console port (RJ-45) – 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port – 1 × passive pass-through port RJ-45 (back to bottom) – 1 × DC power connector |
|
Features |
2×2 single-user/multiuser MIMO with two spatial streams Maximal ratio combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support |
|
Regulatory Domain |
Z (Z regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) – 5.745 to 5.825 GHz; 5 channels |
|
System |
– 512 MB DRAM – 256 MB flash – 1.4 GHz system dual-core CPU |
|
Dimensions (W x L x H) |
165 x 114 x 41 mm (Access point without mounting bracket)) |
|
Weight |
560g (Access point without mounting bracket or any other accessories) |
Product Details
Figure 1 shows the 360° appearance of the AIR-AP1810W.
Figure 2 shows the face and left side of AP.
Note:
|
â‘ |
The Face of AP |
â‘¢ |
48V DC power port |
|
â‘¡ |
The Left side of AP |
â‘£ |
Kensington lock slot |
Figure 3 shows the base of the AP with the ports and connectors.
Note:
|
â‘ |
Console port |
â‘£ |
LAN port 2 |
|
â‘¡ |
Passive Pass-Through port |
⑤ |
PSE / LAN port 1 |
|
â‘¢ |
LAN port 3 |
· PSE / LAN port 1 provides 802.3af/at Power Sourcing Equipment (PSE) PoE-Out power on the LAN 1 Ethernet interface. With 802.3at input the PoE-Out is 6.95W (Class 2).With DC input the PoE-Out is 12.95W (Class 0).
Table 2. Cisco Aironet 1810W series access points can be mounted directly on the wall, to numerous global wall junction standards, or on a desk.
|
Type of Mounting |
Mounting Bracket or Kit to be Used |
|
Wall-mount installation on a single gang junction box or multiple international standards. |
AIR-AP-BRACKET-W2 This bracket is shipped with the access point as standard. A spare can also be ordered from Cisco. |
|
Wall-mount installation directly on wall, where standard junction boxes are not available. |
AIR-AP1810W-KIT= spacer kit This is kit includes an RJ-45 jumper cable and is separately available from Cisco. |
|
Table-mount installation. See Figure 4. |
AIR-OEAP1810-CRD= cradle kit This is kit includes a back cover, RJ-45 jumper cable and is separately available from Cisco. |
☆ AIR-AP1810W includes a Wall Mounting bracket ( AIR-AP-BRACKET-W2) and has a number of Accessory options which are sold separately and can be ordered as spares.

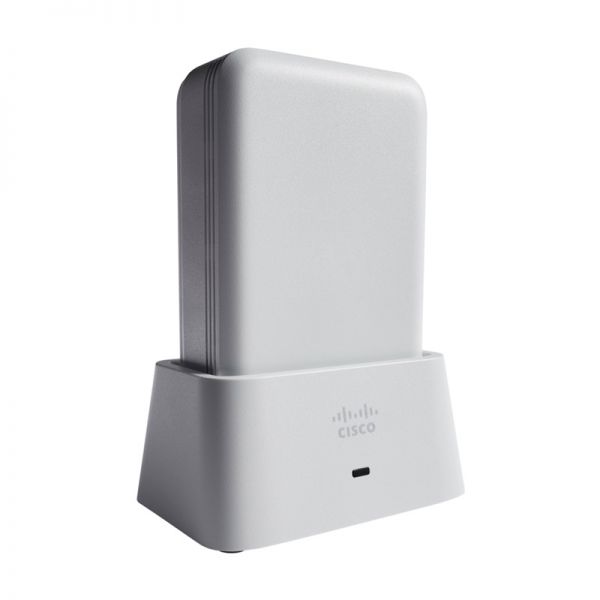

Figure 4. Table-mount installation.
Note:
|
â‘ |
The AP |
|
â‘¡ |
AIR-OEAP1810-CRD= cradle kit |
|
â‘¢ |
Mounting the AP in the Cradle |
· Cisco Aironet AP1810W series access points can be mounted on a table or horizontal surface, using the AIR-OEAP1810-CRD= cradle kit. This kit is shipped with the access point as standard and includes a back cover and an RJ-45 jumper cable. It is also separately available from Cisco as a spare.
Compare to Similar Items
Table 3 shows the comparison between two AP.
|
Models |
AIR-OEAP1810-Z-K9 |
AIR-AP1810W-Z-K9 |
|
Special Feature |
OfficeExtend |
N/A |
|
Interfaces |
– 1 × 10/100/1000BASE-T PoE uplink port – 1 × Management console port (RJ-45) – 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port – 1 × DC power connector |
– 1 × 10/100/1000BASE-T PoE uplink port – 1 × Management console port (RJ-45) – 3 × 10/100/1000BASE-T ports (local Ethernet ports), including 1 PoE out port – 1 × passive pass-through port RJ-45 (back to bottom) – 1 × DC power connector |
|
Regulatory Domain |
Z (Z regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) – 5.745 to 5.825 GHz; 5 channels |
Z (Z regulatory domain): – 2.412 to 2.462 GHz; 11 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) – 5.745 to 5.825 GHz; 5 channels |
