The Cisco ASR-9006-DC chassis is a cornerstone for building or expanding a robust, high-performance network. Its compact 10 RU form factor makes it a perfect fit for environments where space is at a premium, without compromising on functionality or performance. With the potential to handle up to 7 Tbps of data, the chassis can support heavy traffic loads. It has four slots for high-capacity line cards and dual slots for route switch processors (RSP), ensuring system resilience and network uptime through full redundancy capabilities.
The ASR-9006-DC supports Cisco’s advanced IOS XR operating system, which is purpose-designed for carrier-grade networks that require high levels of scalability and reliability. IOS XR’s modular design and fault containment features minimize disruptions and simplify maintenance. The system’s architecture features 1+1 fabric redundancy and the ability to maintain operations smoothly even during component upgrades or replacements.
Another compelling reason to invest in the ASR-9006-DC is its flexibility in terms of power supply. The unit can be equipped with AC, DC, or a combination of power modules, providing adaptability to different power infrastructures. Additionally, its efficient cooling system with two fan trays ensures that the hardware operates within optimal temperature ranges, further enhancing the reliability of the network.
Nortland Systems offers support for the ASR-9006-DC, ensuring that customers can make the most of this sophisticated hardware. With an expert team on stand-by, any questions or issues can be resolved quickly, ensuring that the network remains operational with minimal downtime. In summary, the Cisco ASR-9006-DC is a sound investment for businesses looking to elevate their network infrastructure with a balance of performance, reliability, and adaptability.
ASR-9006-DC is the Cisco ASR-9006 DC Chassis. Cisco ASR 9006 Router in a 10-rack unit (RU) form factor allows for a full featured, highly reliable deployment in space-constrained environments. This product comes fully equipped with all the same software functionality and line card options as the ASR 9010, just in a smaller package. With dual route switch processors (RSP) along with full commons redundancy, system and network resiliency become a reality for slot-reduced deployments. To provide ASR 9006 functions, ASR-9006-DC needs to be configured with necessary components separately.
Quick Specs

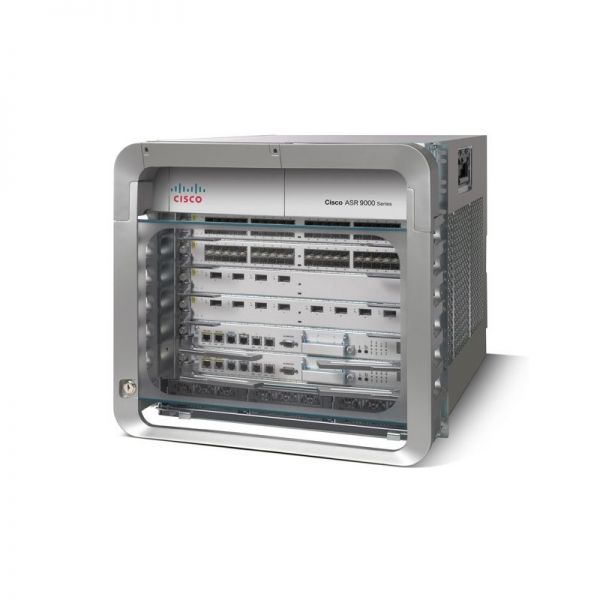

This figure shows the Cisco ASR 9006 Router. To provide ASR 9006 functions, ASR-9006-DC needs to be configured with necessary components separately.
Table 1 shows the Cisco ASR-9006-DC quick specs.
|
Model |
ASR-9006-DC |
|
Type |
Cisco ASR-9006 DC Chassis |
|
ASR 9006 Specs |
|
|
Slots |
4 Line Cards |
|
Rack Size |
10 RU |
|
Max Capacity |
7 Tbps |
|
Size (H x W x D) |
17.5 in. x 17.5 in. x 28.65 in. |
|
Power |
AC: 3 kW power module |
|
Fan |
2 fan trays |
|
Airflow |
Side to Side (Front to Back Option) |
|
RSP / RP |
2 (1+1 RSP redundancy) |
|
Fabric Architecture |
1+1 fabric redundancy |
|
Software |
IOS XR |
Configuration
Table 2 shows some recommended components of ASR-9006-DC.
|
Model |
Description |
|
ASR-9006-FAN |
ASR-9006-FAN Cisco ASR 9006 Series Fan Tray |
|
PWR-2KW-DC-V2 |
Cisco ASR 9000 Power Module PWR-2KW-DC-V2 2KW DC Power Module Version 2 for ASR-9006 & ASR-9010 Spare |
|
A9K-RSP440-TR |
Cisco ASR 9000 Route Switch Processor A9K-RSP440-TR ASR9K Route Switch Processor with 440G/slot Fabric and 6GB |
|
A9K-RSP440-SE |
Cisco ASR 9000 Route Switch Processor A9K-RSP440-SE ASR9K Route Switch Processor with 440G/slot Fabric and 12GB |
|
A9K-SIP-700 |
Cisco ASR 9000 Interface A9K-SIP-700 Cisco ASR 9000 Series SPA Interface Processor-700 |
|
A9K-24X10GE-SE |
Cisco ASR 9000 Series Router Ethernet Linecard A9K-24X10GE-SE ASR 9000 24-port 10GE, Service Edge Optimized LC (spare) |
|
A9K-2X100GE-SE |
Cisco ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-SE ASR 9000 2-port 100GE, Service Edge Optimized LC (spare) |
|
A9K-2X100GE-TR |
Cisco ASR 9000 Series Router Ethernet Linecard A9K-2X100GE-TR ASR 9000 2-port 100GE, Packet Transport Optimized LC (spare) |
Compare to Similar Item
Table 3 shows the comparison between ASR-9006-DC and ASR-9006-DC-V2.
|
Model |
ASR-9006-DC |
ASR-9006-DC-V2 |
|
Type |
Cisco ASR-9006 DC Chassis |
Cisco ASR-9006 DC Chassis PEM Version 2 |
|
Slots |
4 Line Cards |
4 Line Cards |
|
Rack Size |
10 RU |
10 RU |
* The Cisco ASR 9000 Series has a modular power architecture available in both AC and DC. The power supplies are housed in field-serviceable Power Entry Modules (PEMs), which also come in AC and DC forms. Each PEM can hold up to three or four modules depending on its corresponding type, with no power zones or placement restrictions (mixing of AC and DC supplies is not supported).
